🏗️ - Designing / die-sorter
Discussion about the "wafer.space design sorter" that Andrew Wingate / evezor is designing to enable the service. See more @ https://github.com/evezor/waferspace_die_sorter
Between 2026-01-31 11:59 p.m. and 2026-03-01 12:00 a.m.
Avatar
Andrew Wingate 2026-02-14 7:38 a.m.

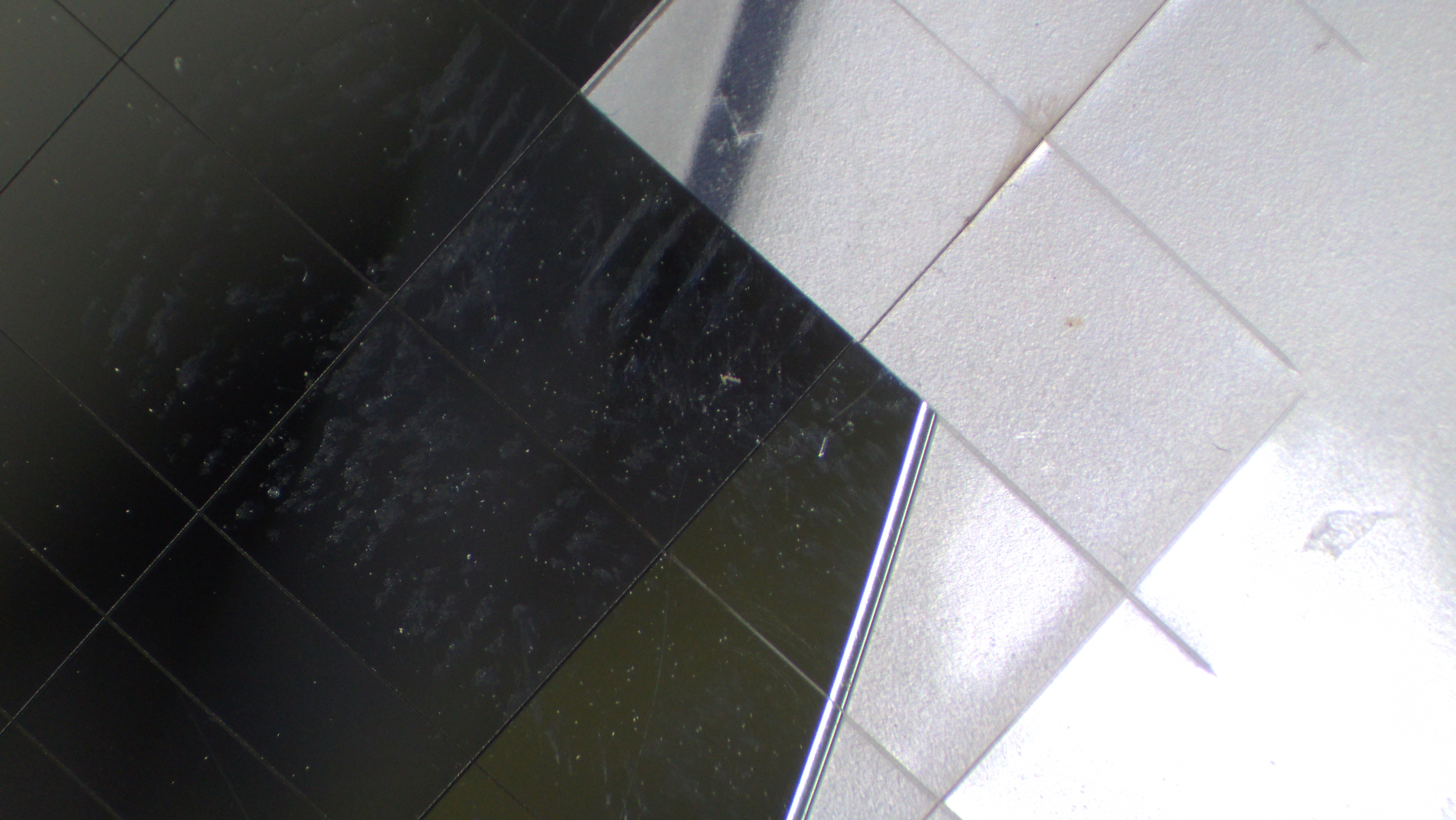

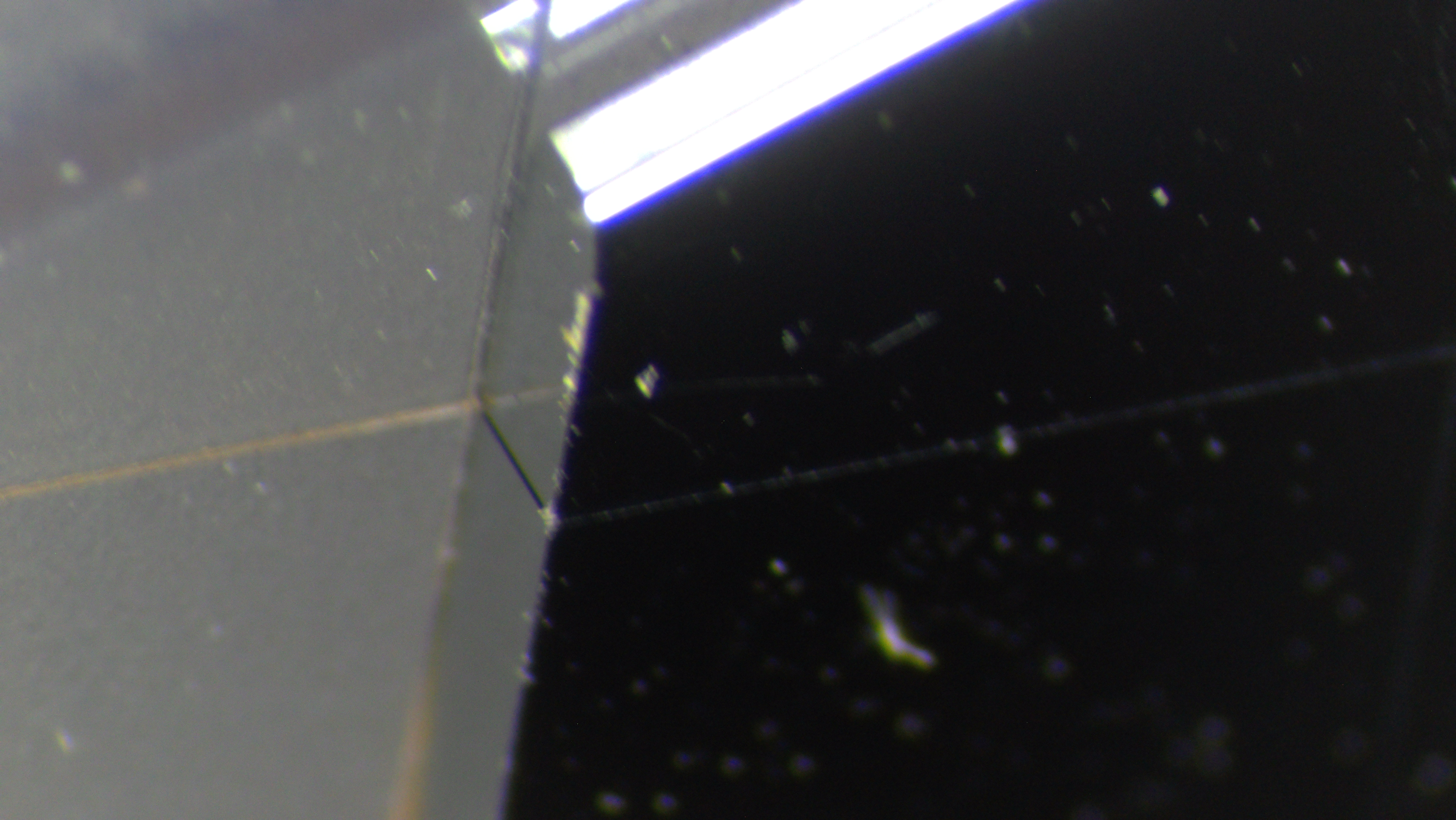

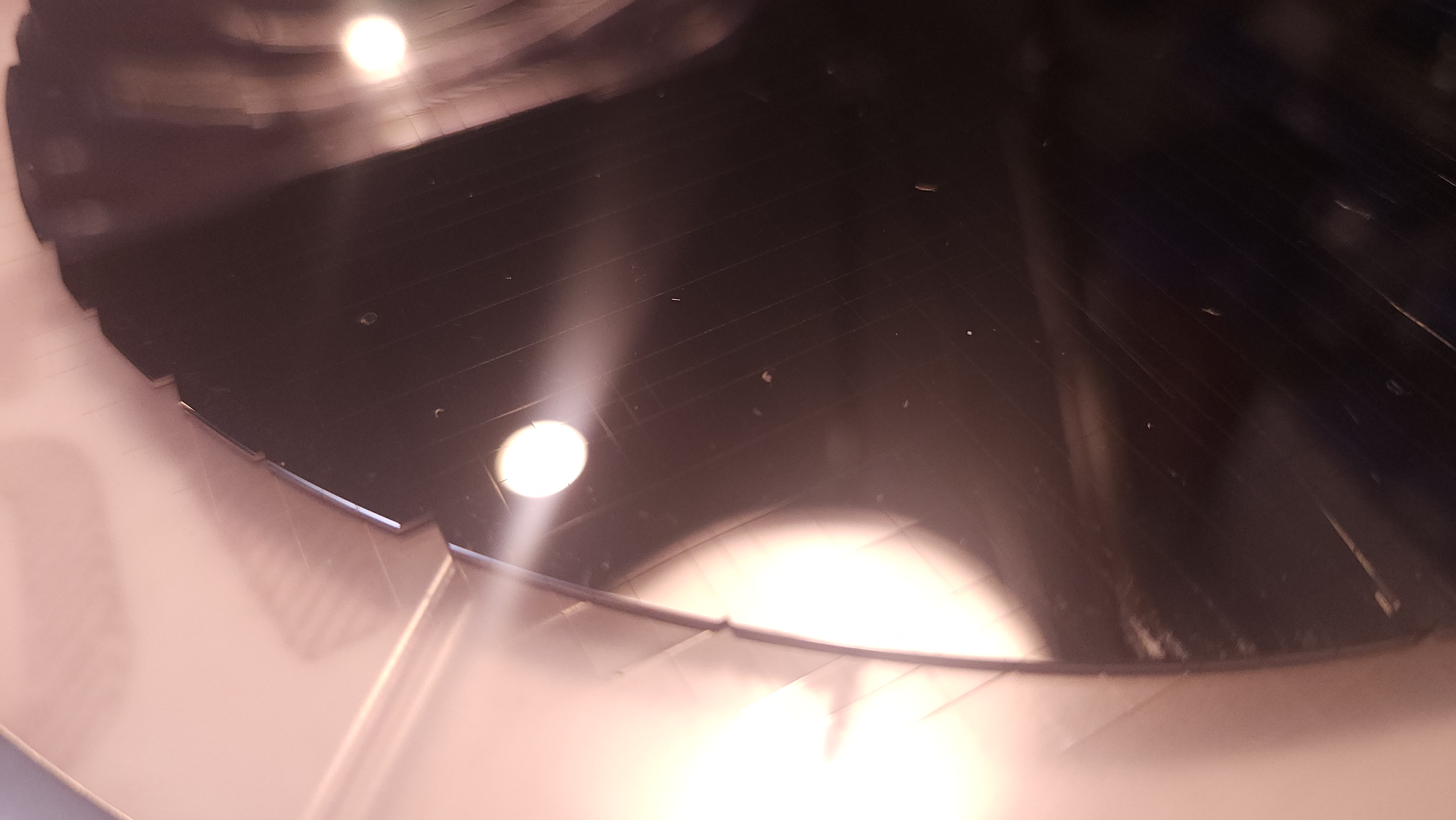

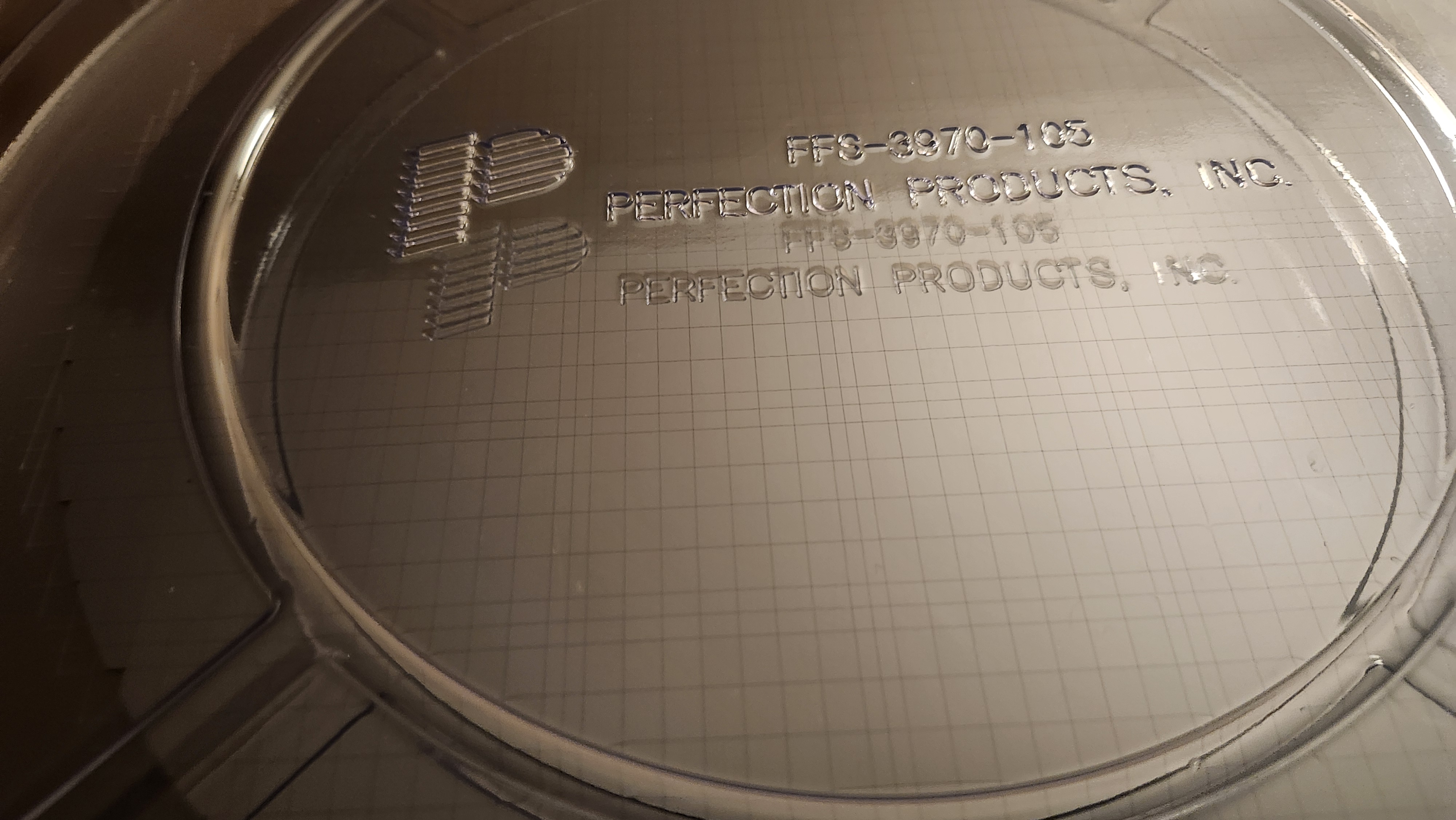

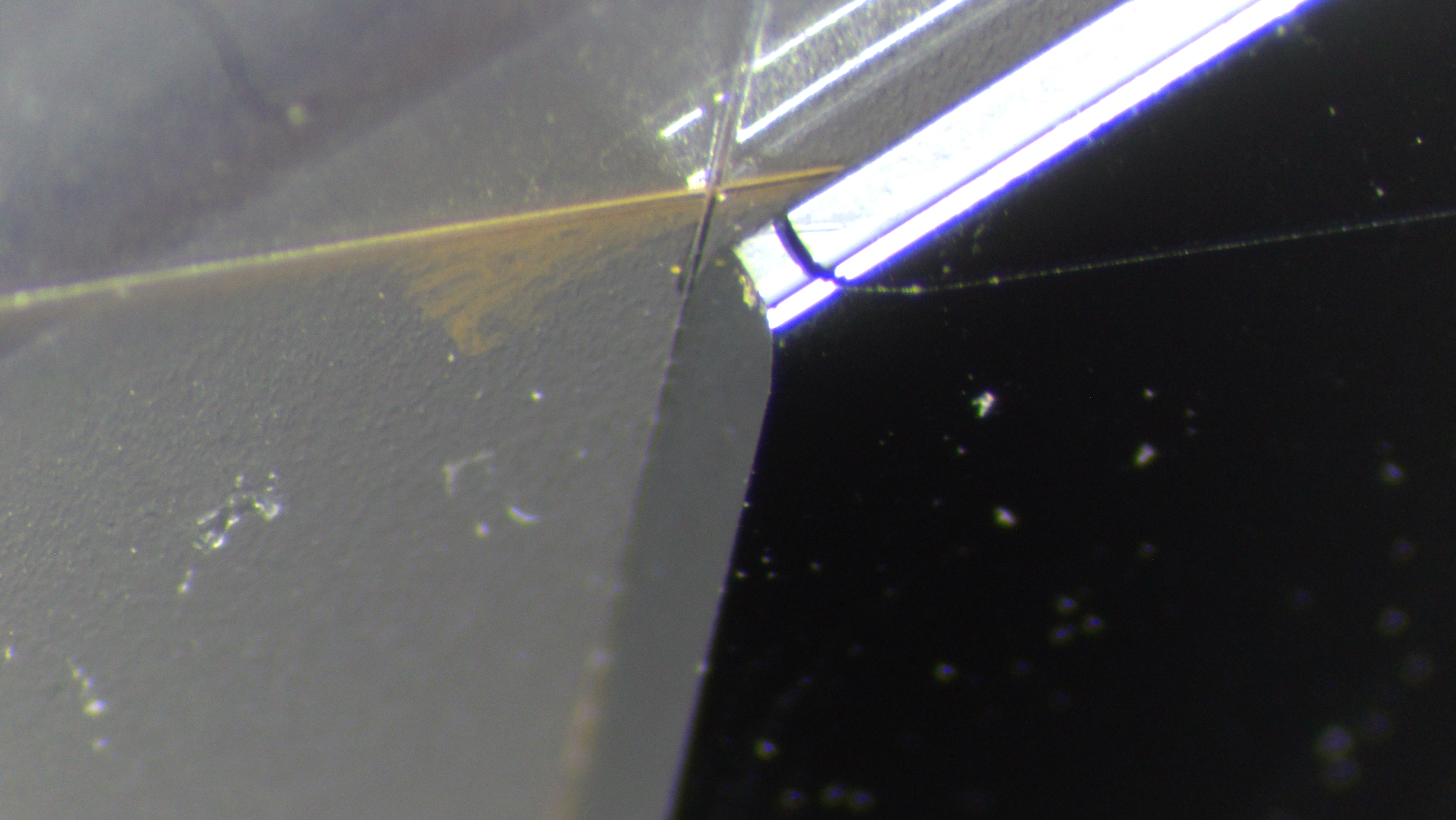

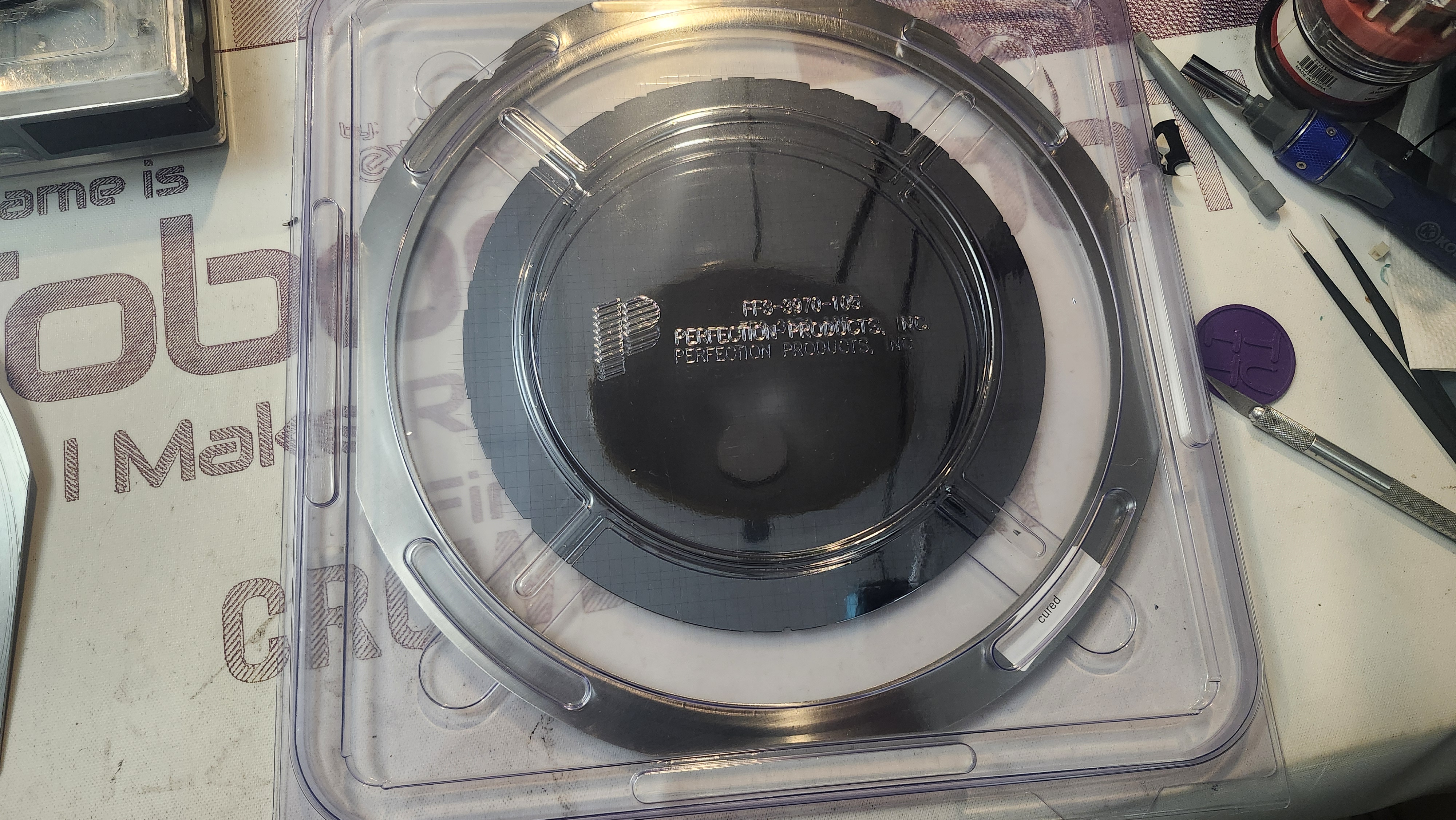

Just got the test sliced wafers in today. It's hard to see, but there's a lot of dies on there
Image attachment
Image attachment
Image attachment
👏 1
❤️ 1
waferspace 1
7:42 a.m.

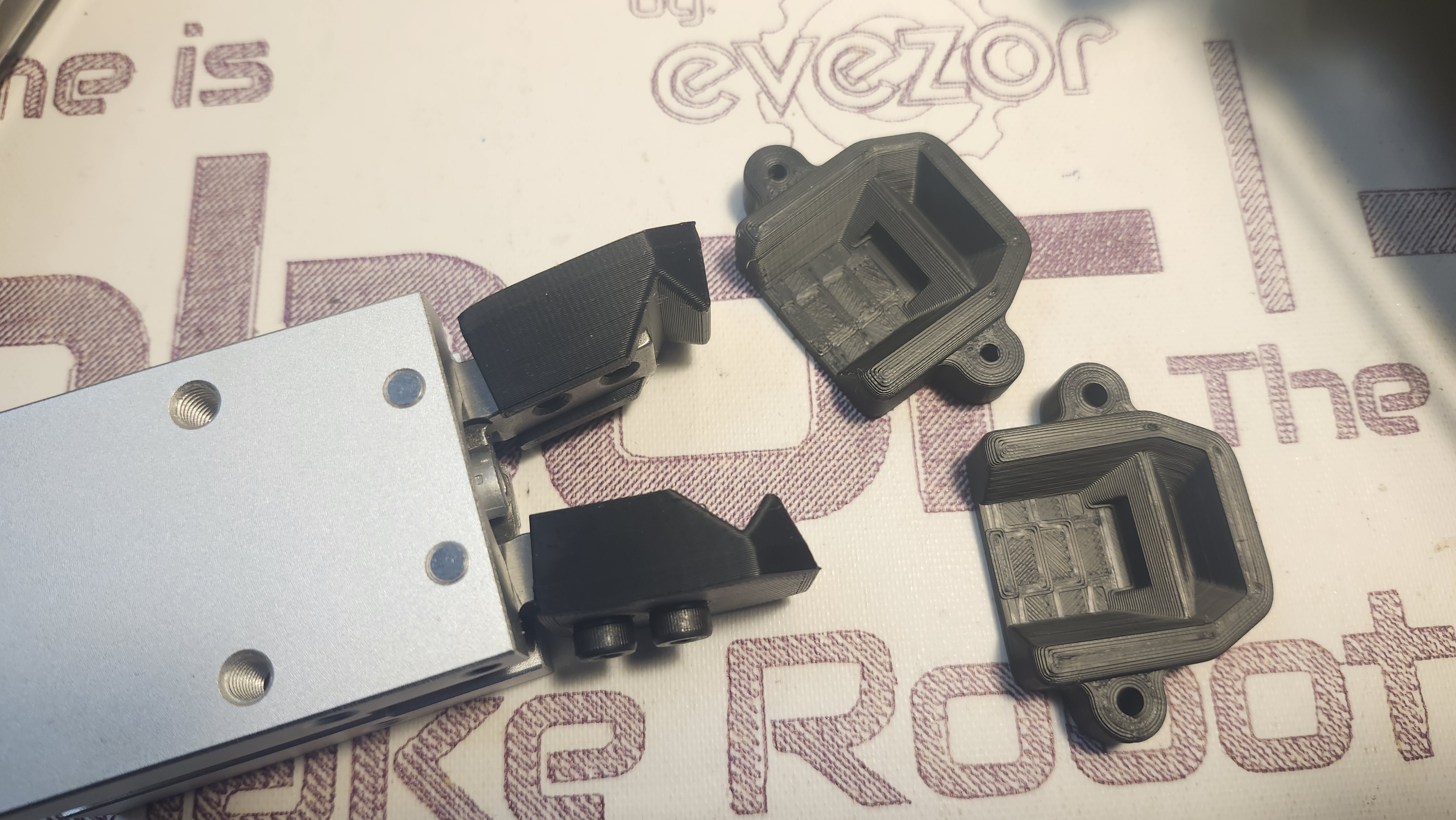

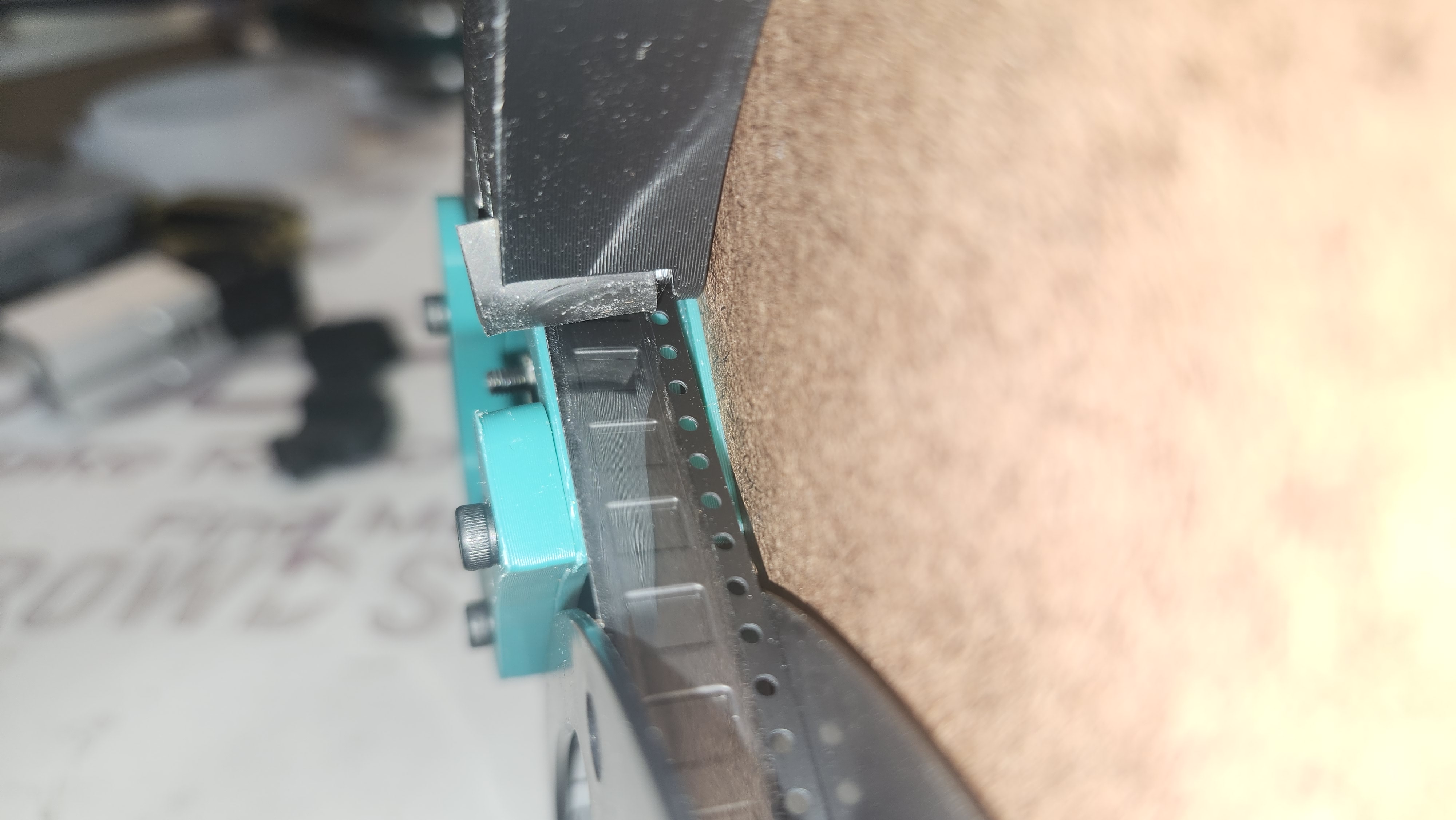

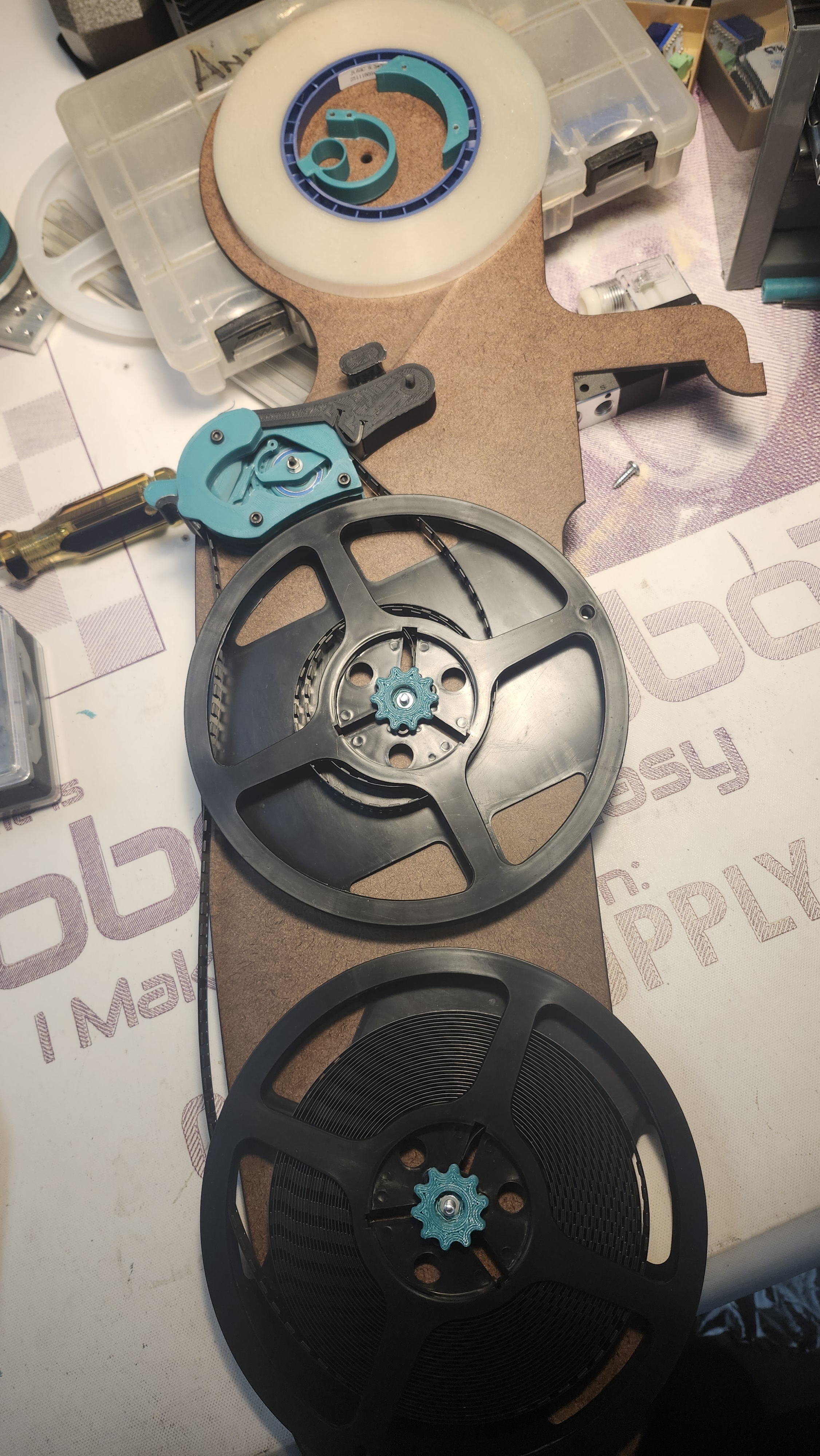

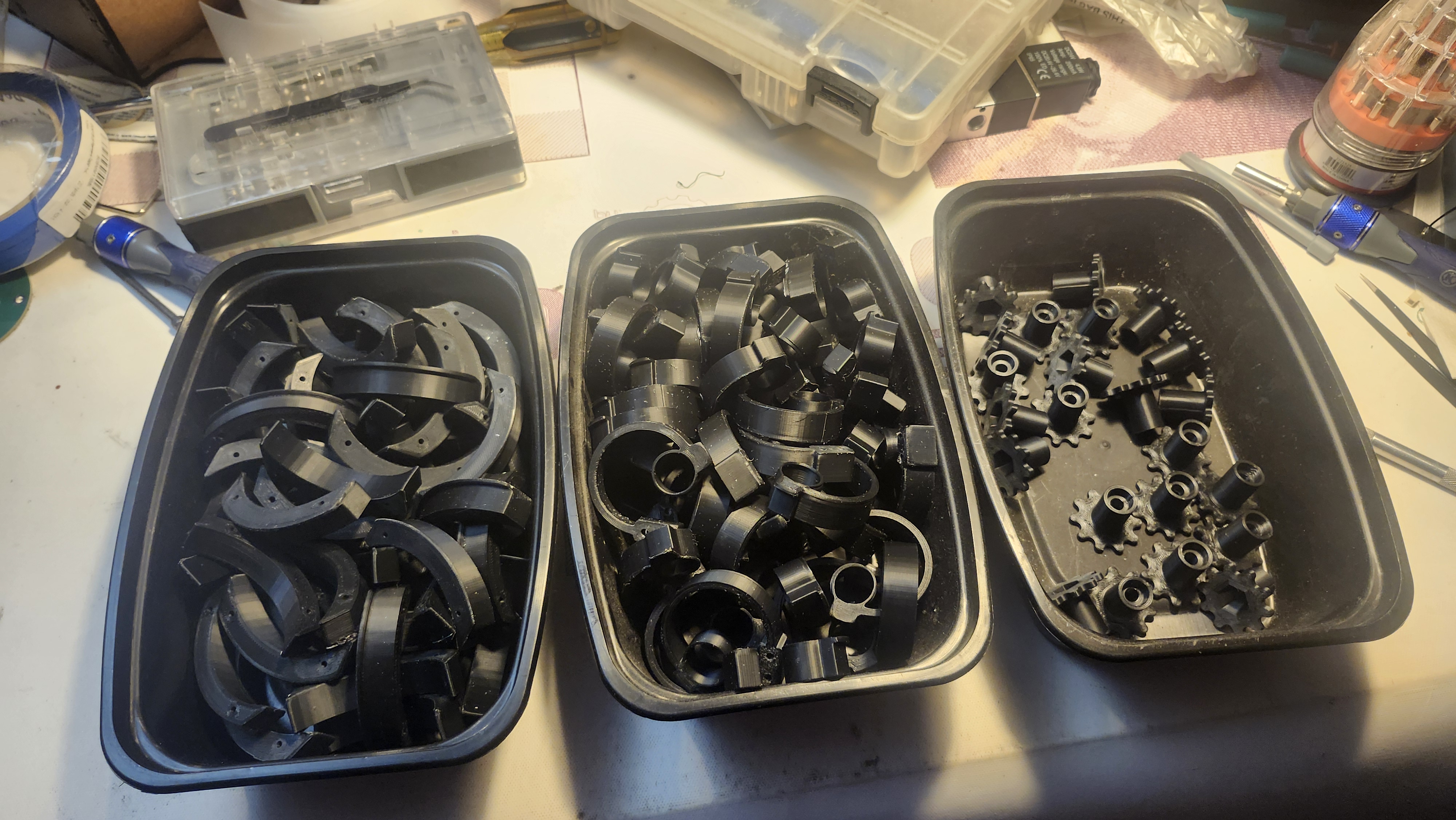

My printer has been trudging away making parts. The gripper is going to be how the maching grabs each feeder when it's that feeder's turn. It's used for stability and location purposes. More coming on that soon (edited)
Image attachment
Image attachment
7:44 a.m.

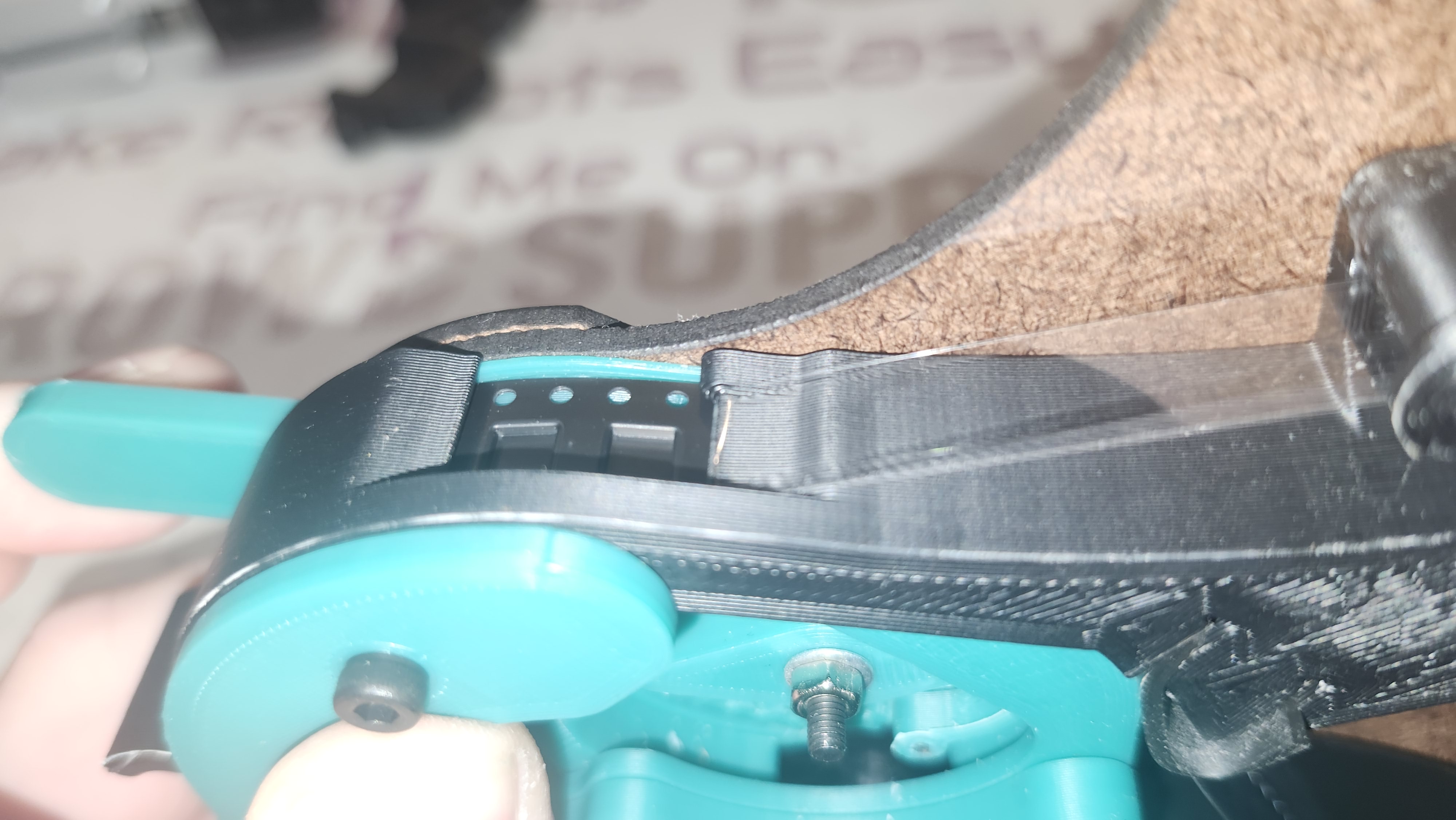

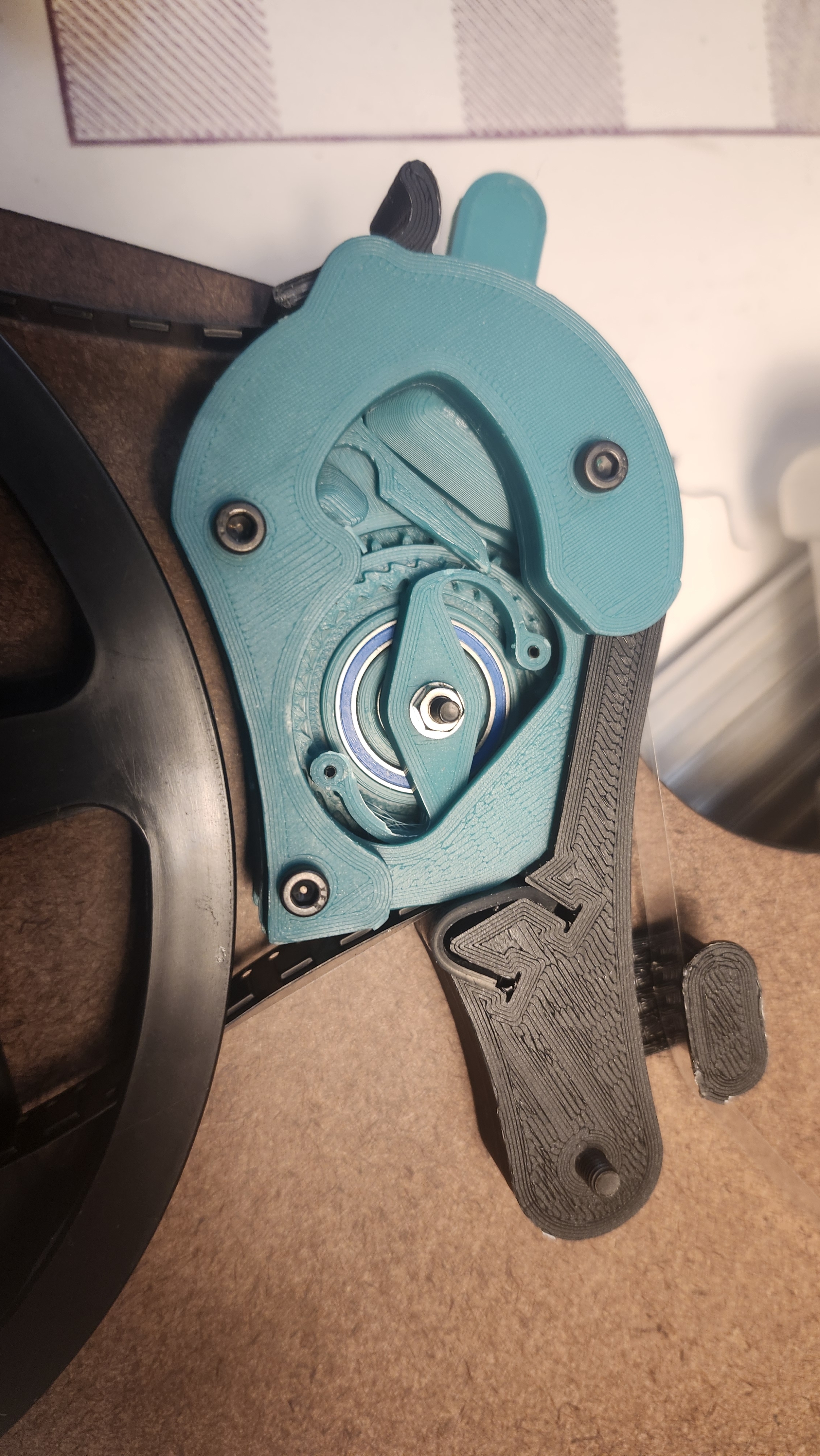

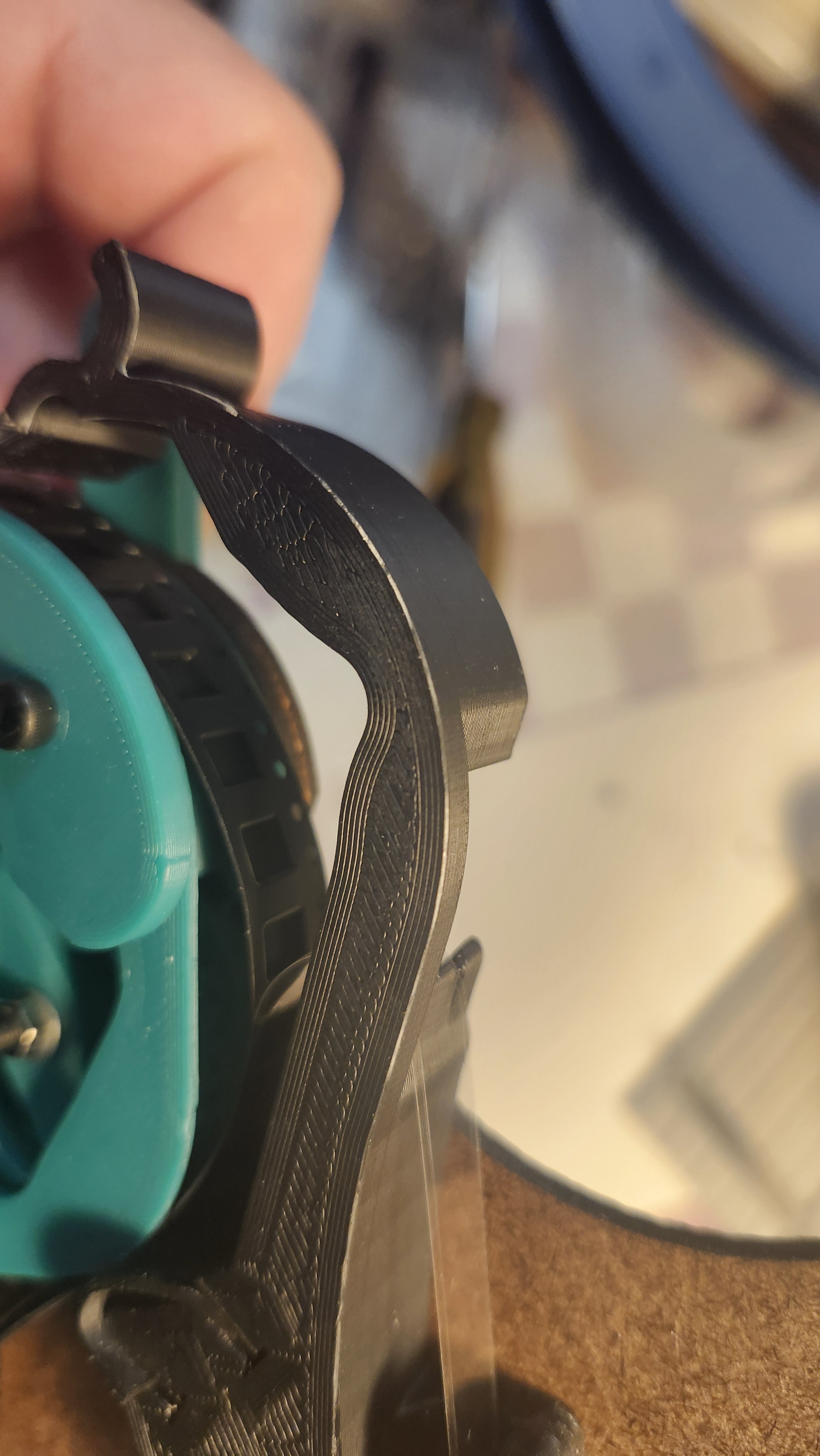

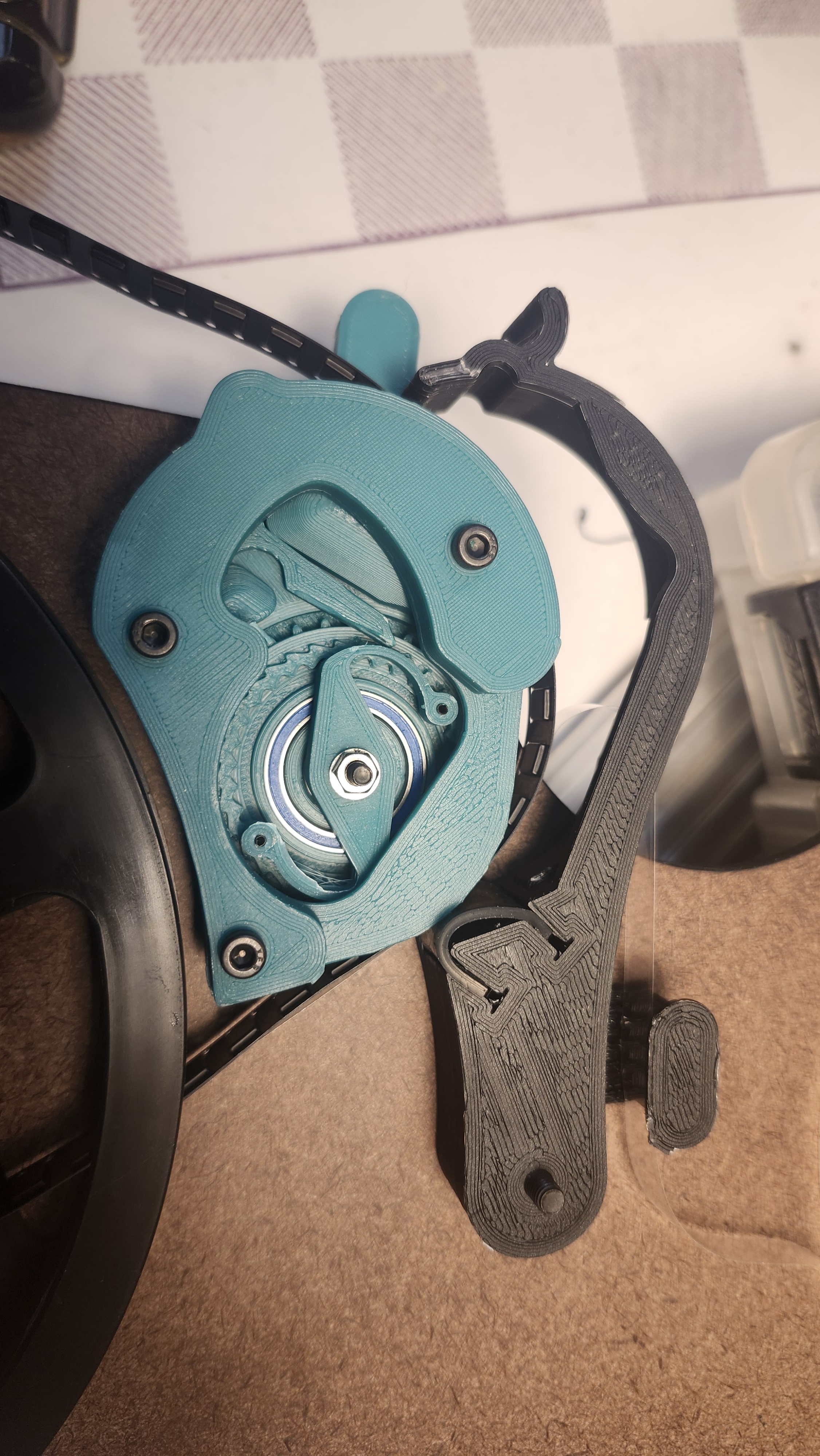

Also have the feeders more or less designed. Just a few last minor changes and I think we can start rocking on those. I've got some video, but discord doesn't like large files.
Image attachment
Image attachment
Image attachment
Image attachment
Image attachment
Image attachment
❤️ 1
Avatar
Avatar
Andrew Wingate
Just got the test sliced wafers in today. It's hard to see, but there's a lot of dies on there
asic destroyer 2026-02-15 5:26 p.m.
wafers from run 1?
Avatar
urish 2026-02-15 5:32 p.m.
nope, run 1 hasn't returned yet
❤️ 1
Avatar
Avatar
asic destroyer
wafers from run 1?
Tim 'mithro' Ansell 2026-02-15 11:26 p.m.
We got some blank wafers diced so that Andrew can verify the die sorting machine. (edited)
👍 4
Avatar
Andrew Wingate 2026-02-16 11:50 a.m.
Image attachment
11:51 a.m.
Image attachment
❤️ 2
Avatar
Avatar
Andrew Wingate
Click to see attachment 🖼️
Tim 'mithro' Ansell 2026-02-17 10:04 p.m.
What is the light blue circle thing?
Avatar
Avatar
Tim 'mithro' Ansell
What is the light blue circle thing?
Tim 'mithro' Ansell 2026-02-17 10:05 p.m.
In that first picture. I know its the reel in the second one....
Avatar
Avatar
Tim 'mithro' Ansell
What is the light blue circle thing?
Andrew Wingate 2026-02-17 10:08 p.m.
I'm thinking of having a carousel that all the feeders are hanging on. It spins around to index. This way also in the future we could just add another for faster/more die support
10:09 p.m.
I'll have much more to show on Wed probably
Avatar
carlfk 2026-02-18 6:14 a.m.
Image attachment
😮 1
Avatar
carlfk 2026-02-18 6:35 a.m.
Image attachment
Avatar
carlfk 2026-02-18 6:43 a.m.
Image attachment
6:47 a.m.
Image attachment
Avatar
Andrew Wingate 2026-02-21 6:22 p.m.

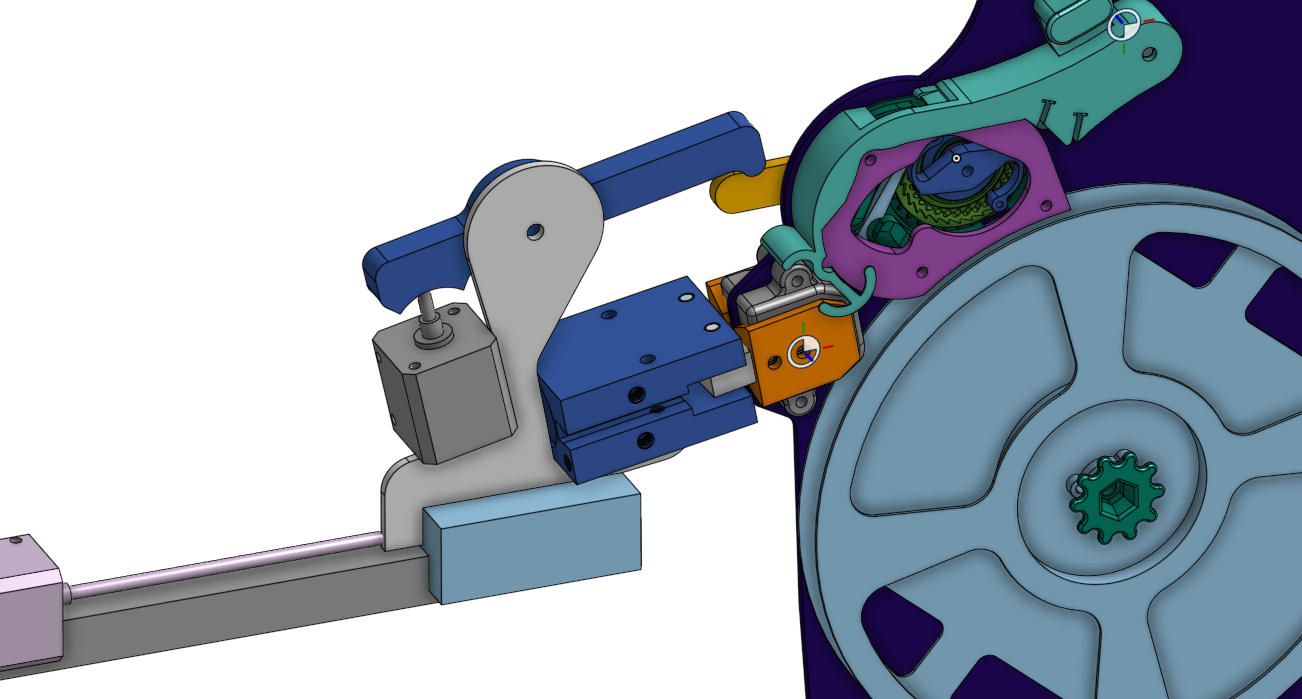

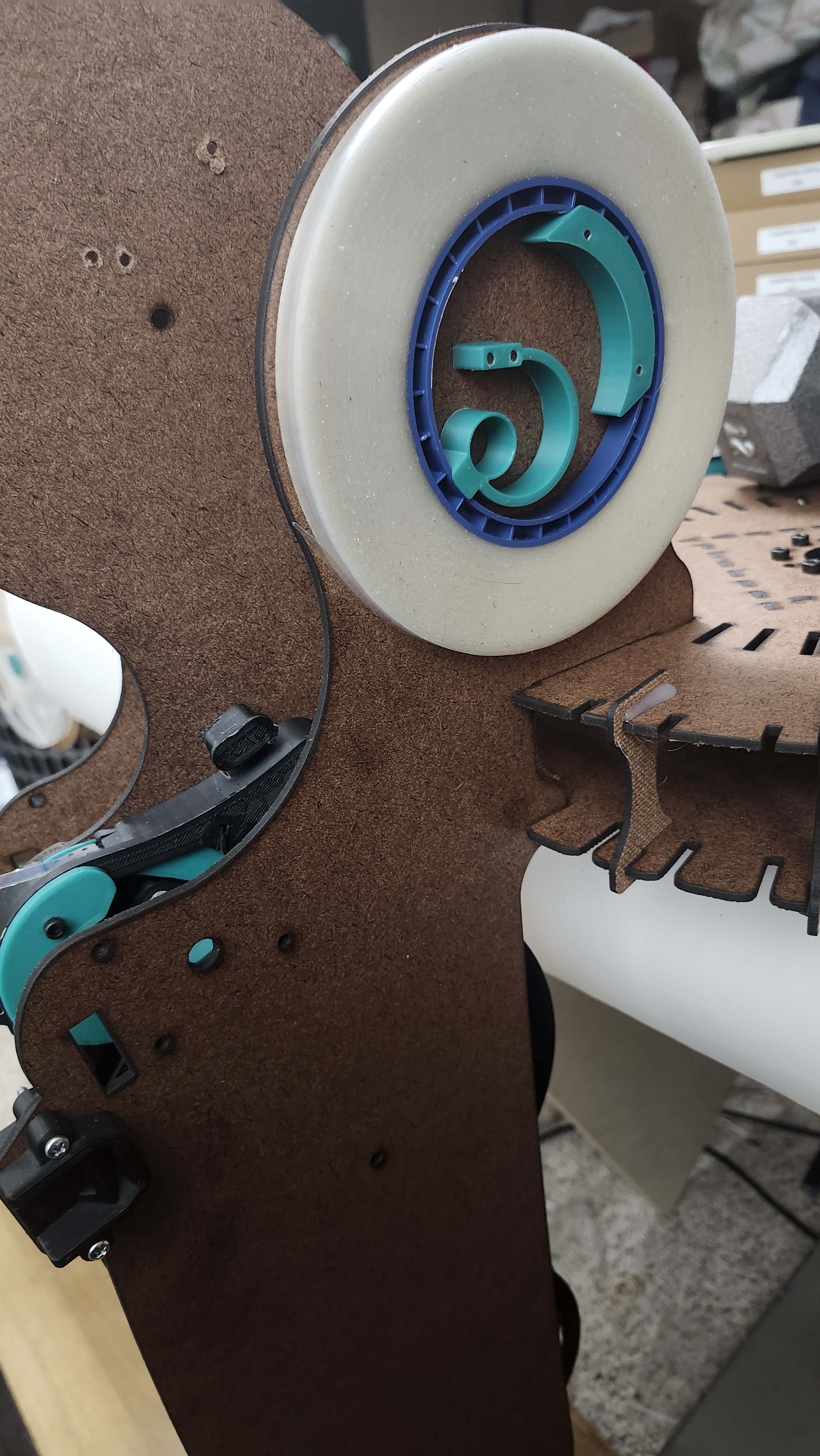

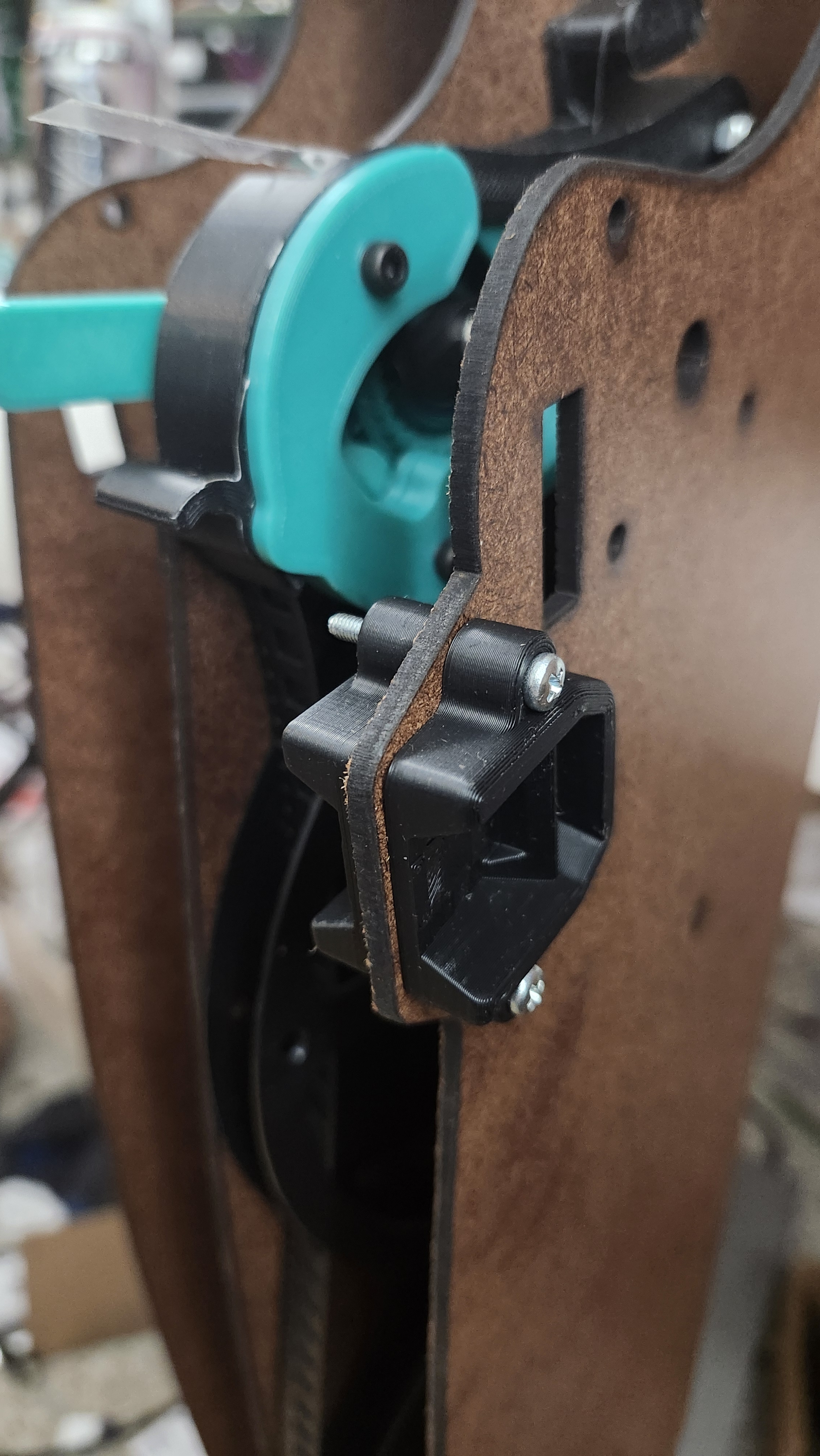

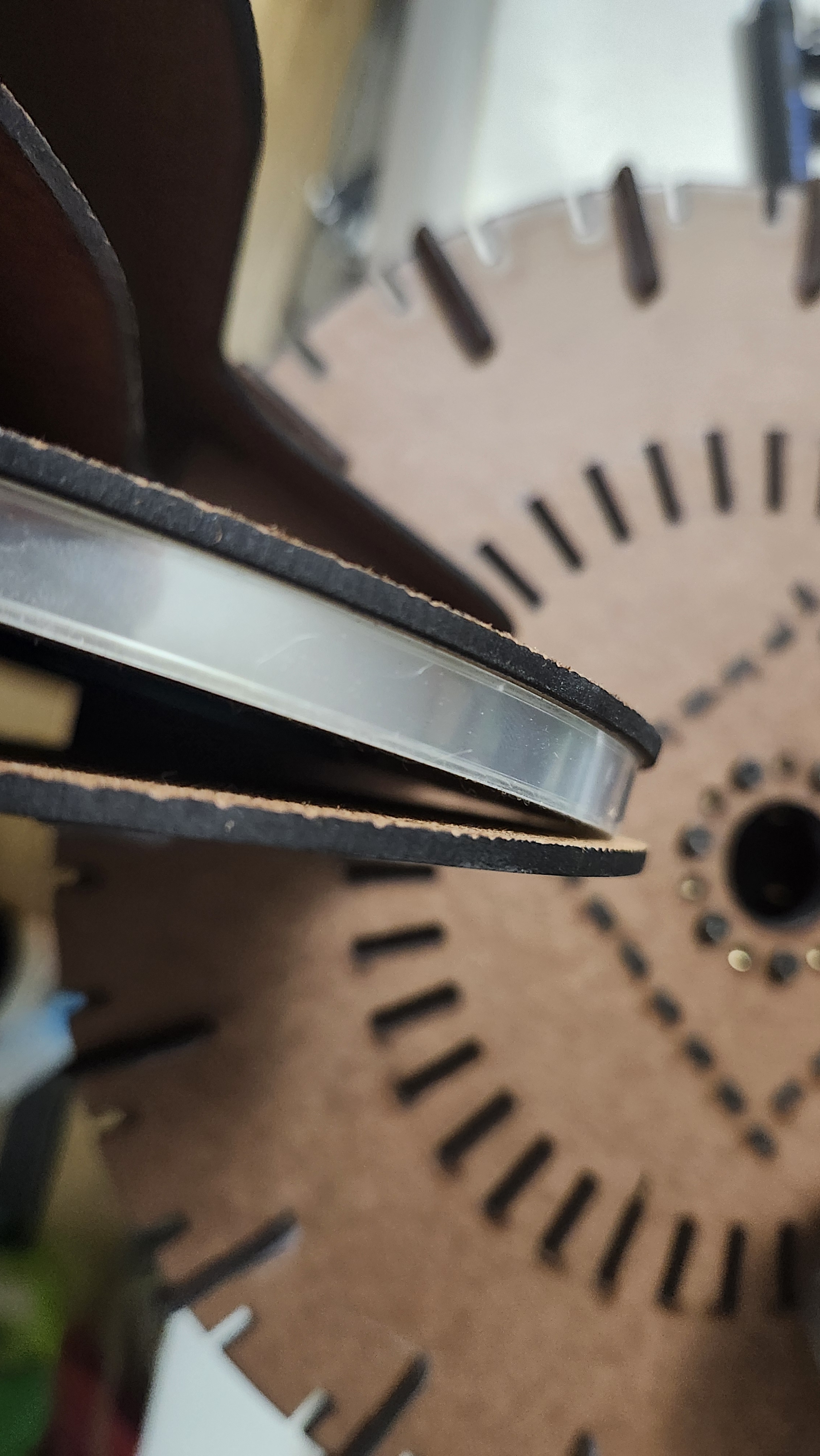

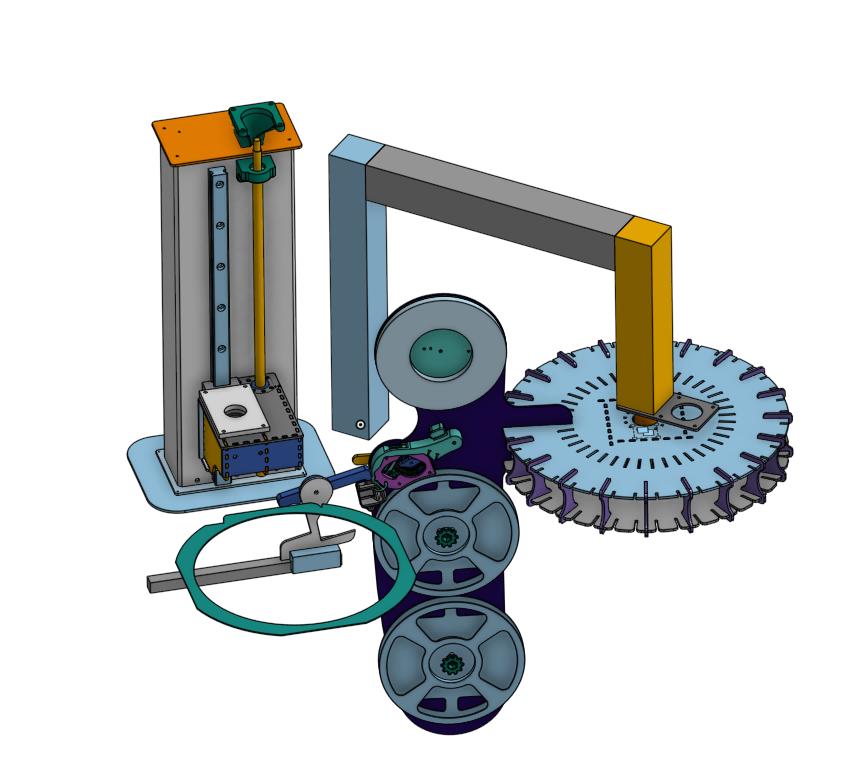

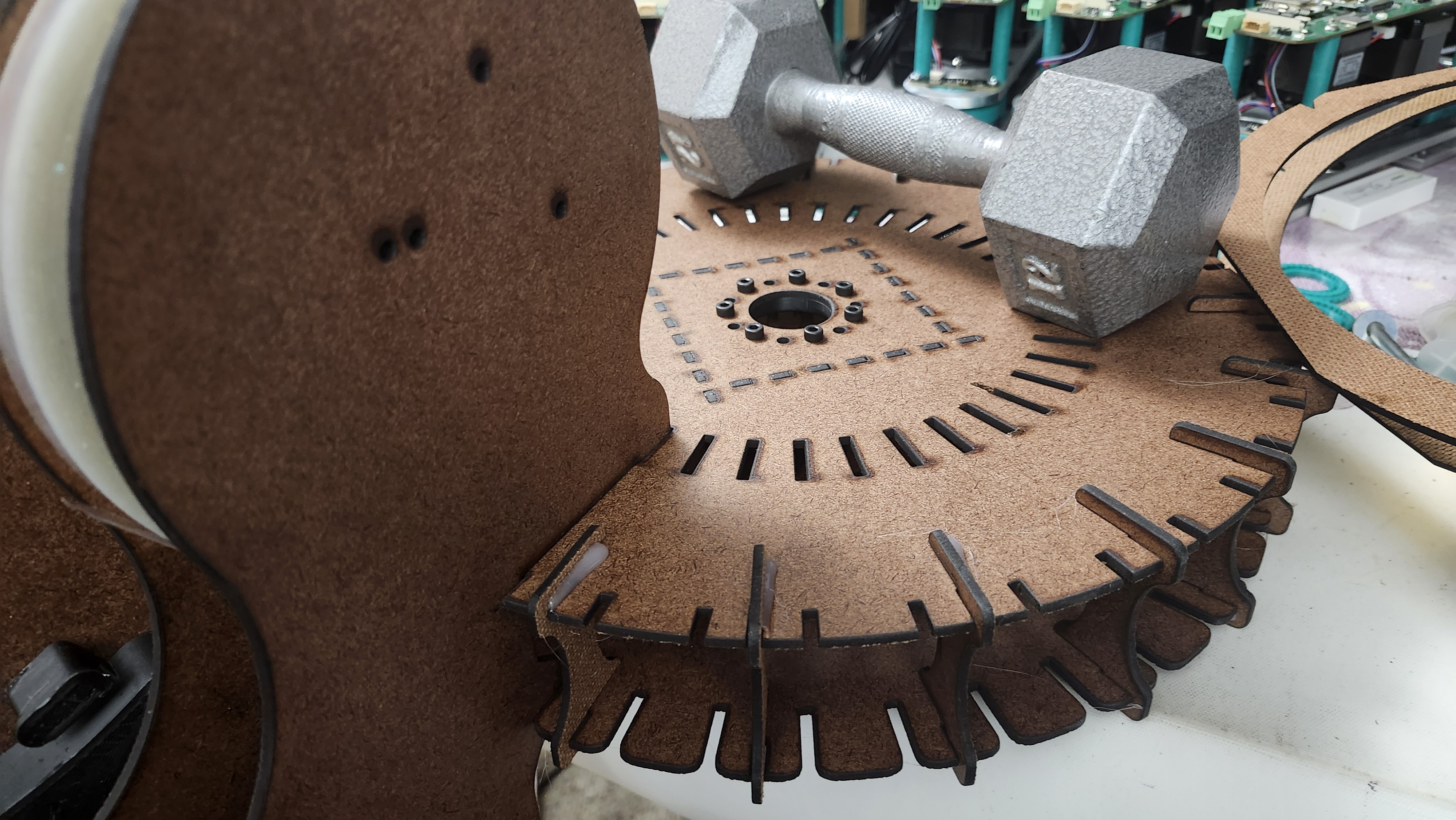

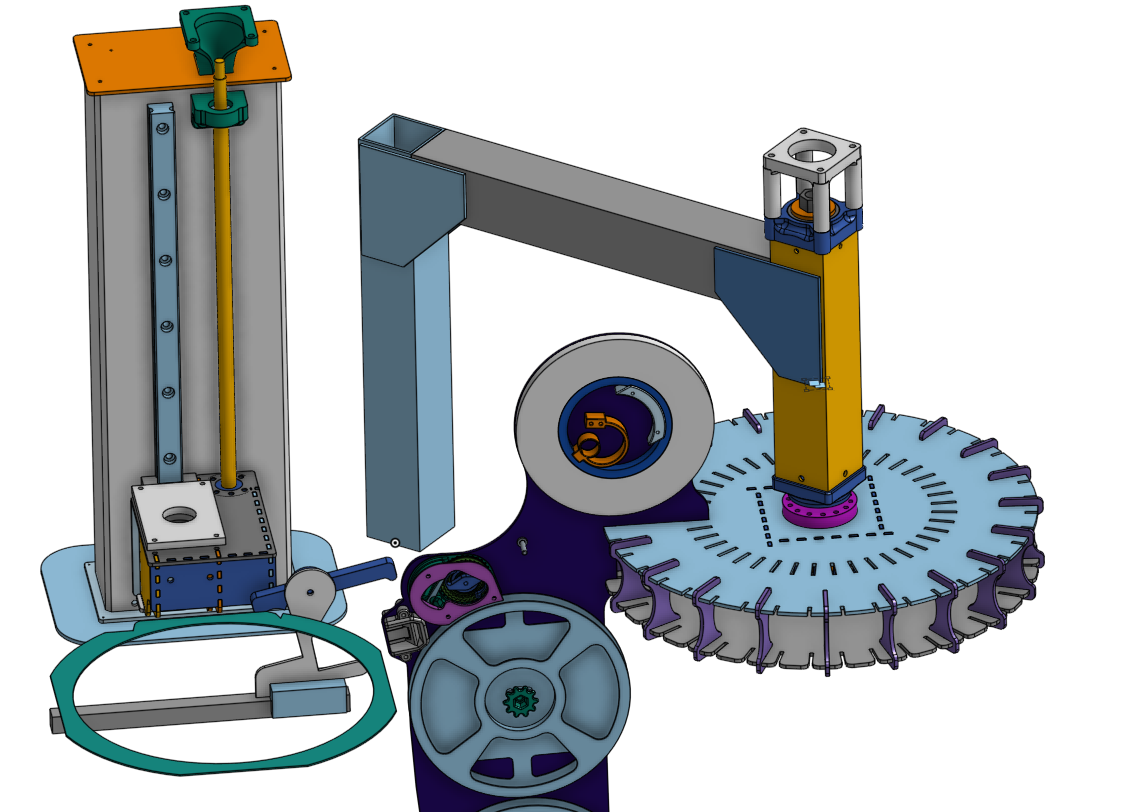

Hey all, I've got a number of components on order so we'll see how things go when I get them. A few small changes, I think the chandelier will be direct driven, I have a motor on the way. I made the first rev chandelier carousel thing. There's quite a lot of things I don't like, but overall I'm liking the direction. I have made some changes to the feeders as there wasn't room for the toolhead with the cover tape where it was, so moved it back futher. Probably a lot more, but that's what I have in my mind at the moment.
Image attachment
Image attachment
Image attachment
Image attachment
Image attachment
❤️ 1
Avatar
asic destroyer 2026-02-21 10:31 p.m.
crazy
Avatar
Andrew Wingate 2026-02-26 4:20 a.m.
I have been trying to figure the best way to get the dies off the tape and a friend shared this video with me. It seems I'm going to need to make a thing that pokes from the bottom afterall. https://youtu.be/oeSME_ZADe4?si=8j41BsaHpf3qu-0T&t=30
Aaron C
S-King Product: Flip Chip Die Bonder (High Precision Solution)
❤️ 1
