Leo Moser (mole99) 2025-12-12 7:43 a.m.
7:43 a.m.

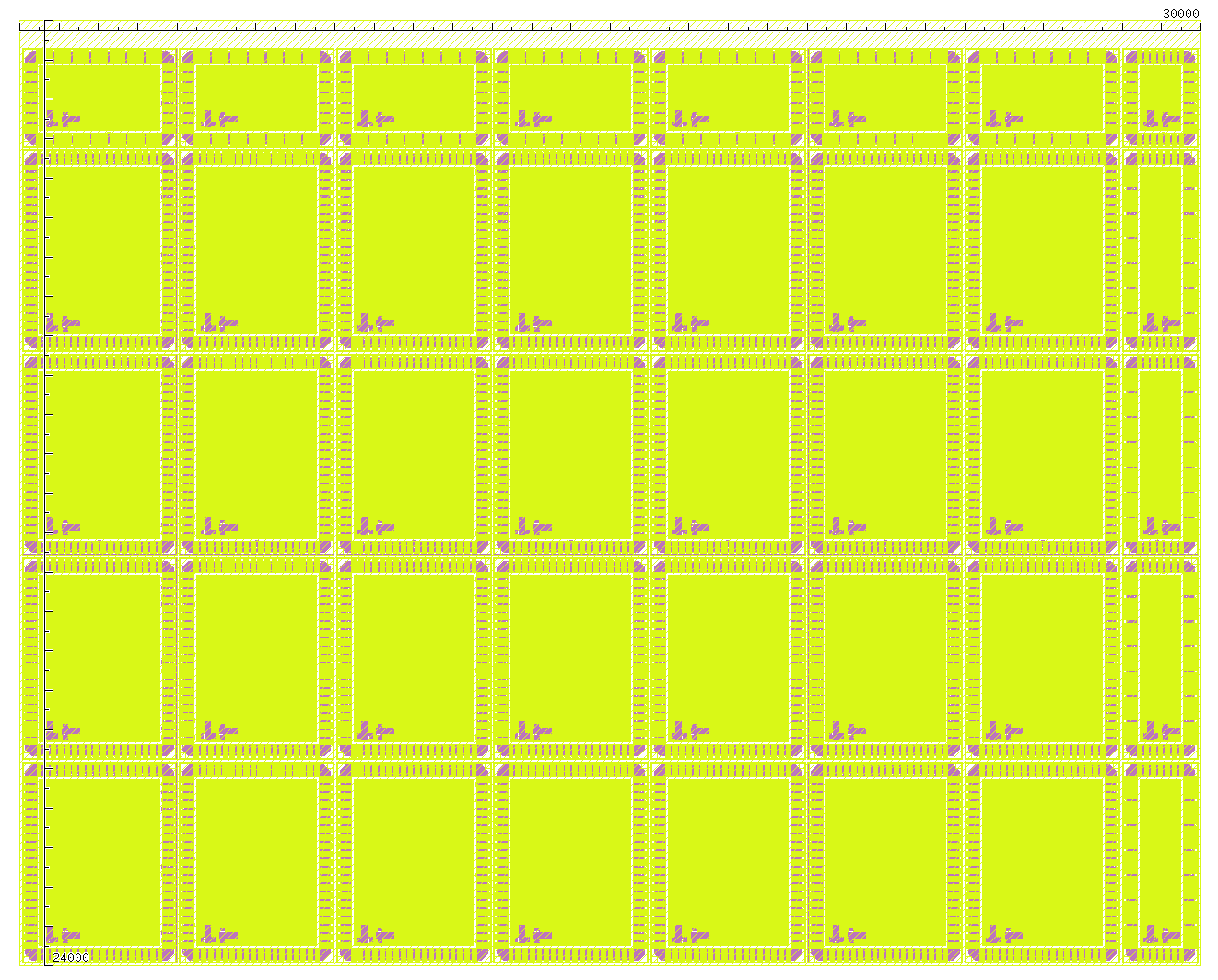

This is what the reticle looks like:
7:43 a.m.
Image attachment
Avatar
Andrew Wingate 2025-12-12 7:44 a.m.

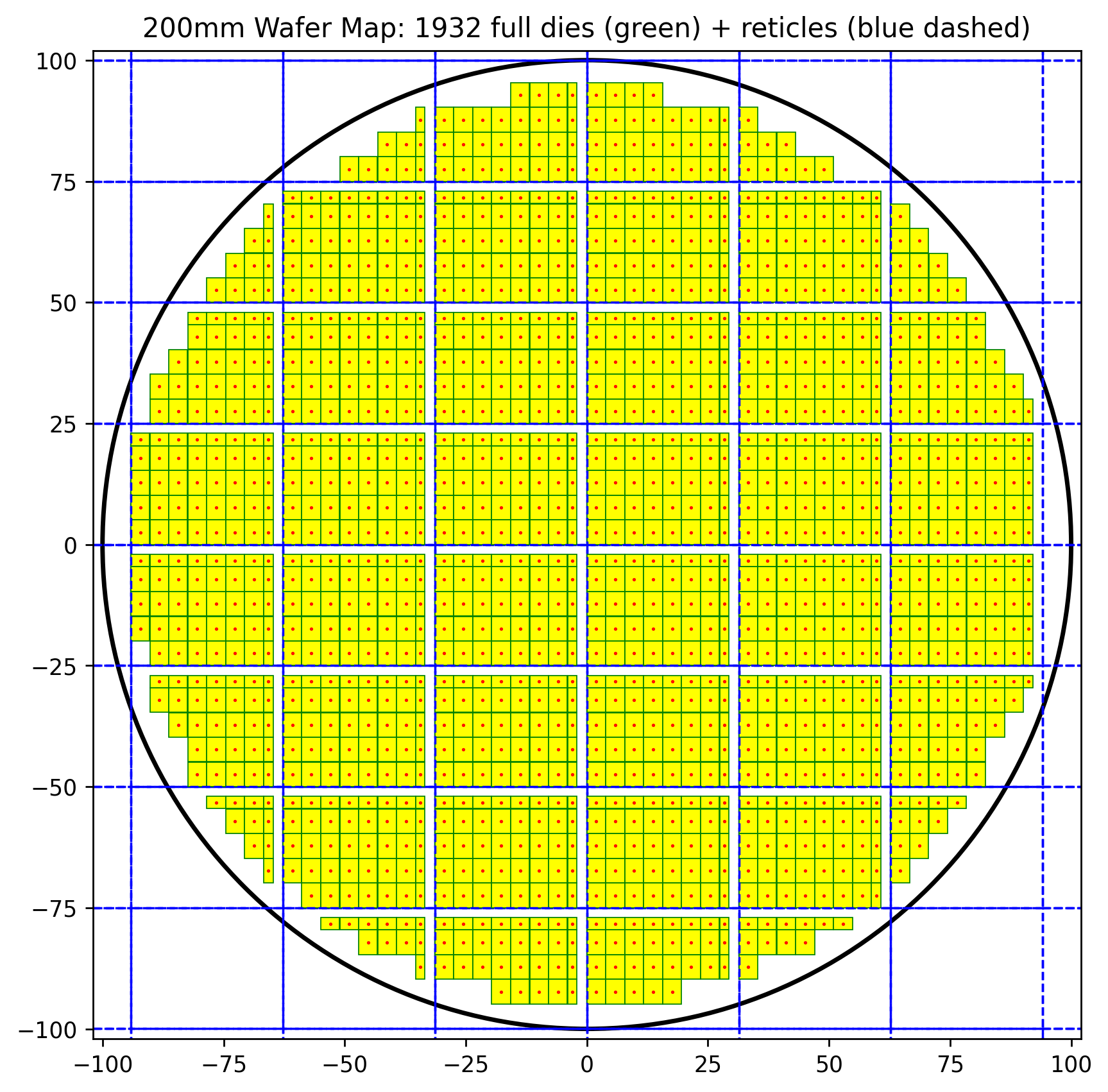

This is the same, yes?
Image attachment
Avatar
Tim 'mithro' Ansell 2025-12-12 7:44 a.m.
What's the T T shapes? 😛
Avatar
Leo Moser (mole99) 2025-12-12 7:44 a.m.

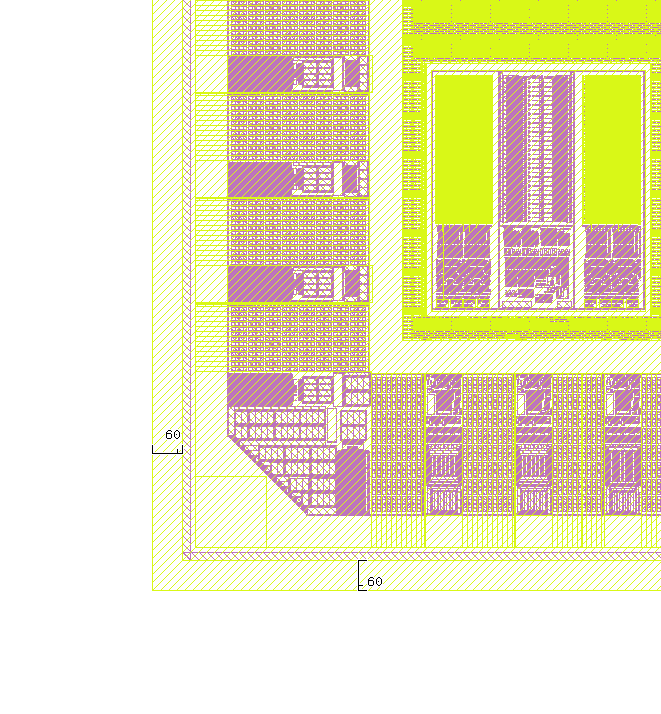

All dies are aligned to the bottom left, there is a 60um spacing between the dies.
7:44 a.m.
Image attachment
Avatar
Avatar
Tim 'mithro' Ansell
What's the T T shapes? 😛
Leo Moser (mole99) 2025-12-12 7:44 a.m.
SRAM
Avatar
Avatar
Leo Moser (mole99)
Click to see attachment 🖼️
Andrew Wingate 2025-12-12 7:46 a.m.
Yes, I see what you're saying now Leo. I have updated my stuff since learning it's down in the corner.
👍 1
