Andrew Wingate 2026-05-30 7:03 a.m.

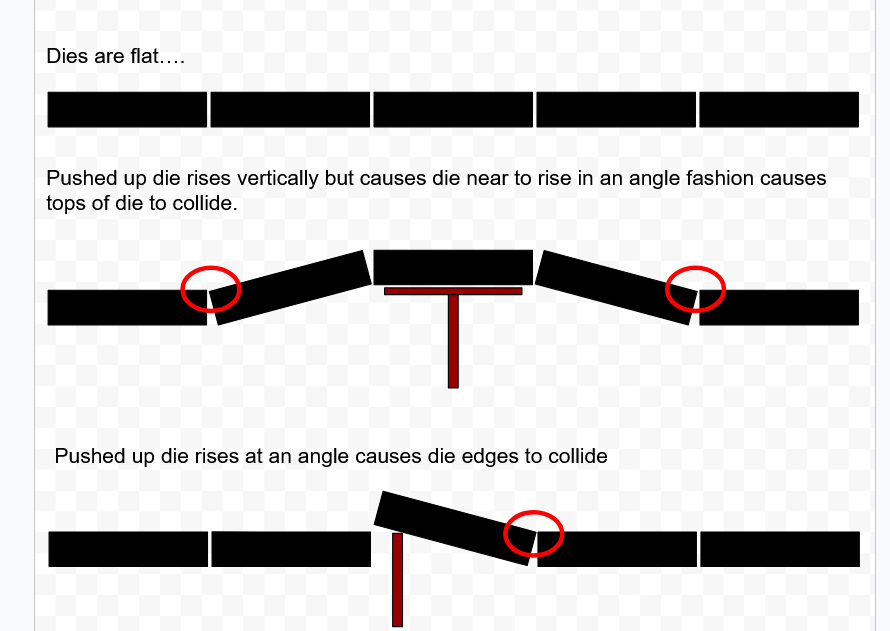

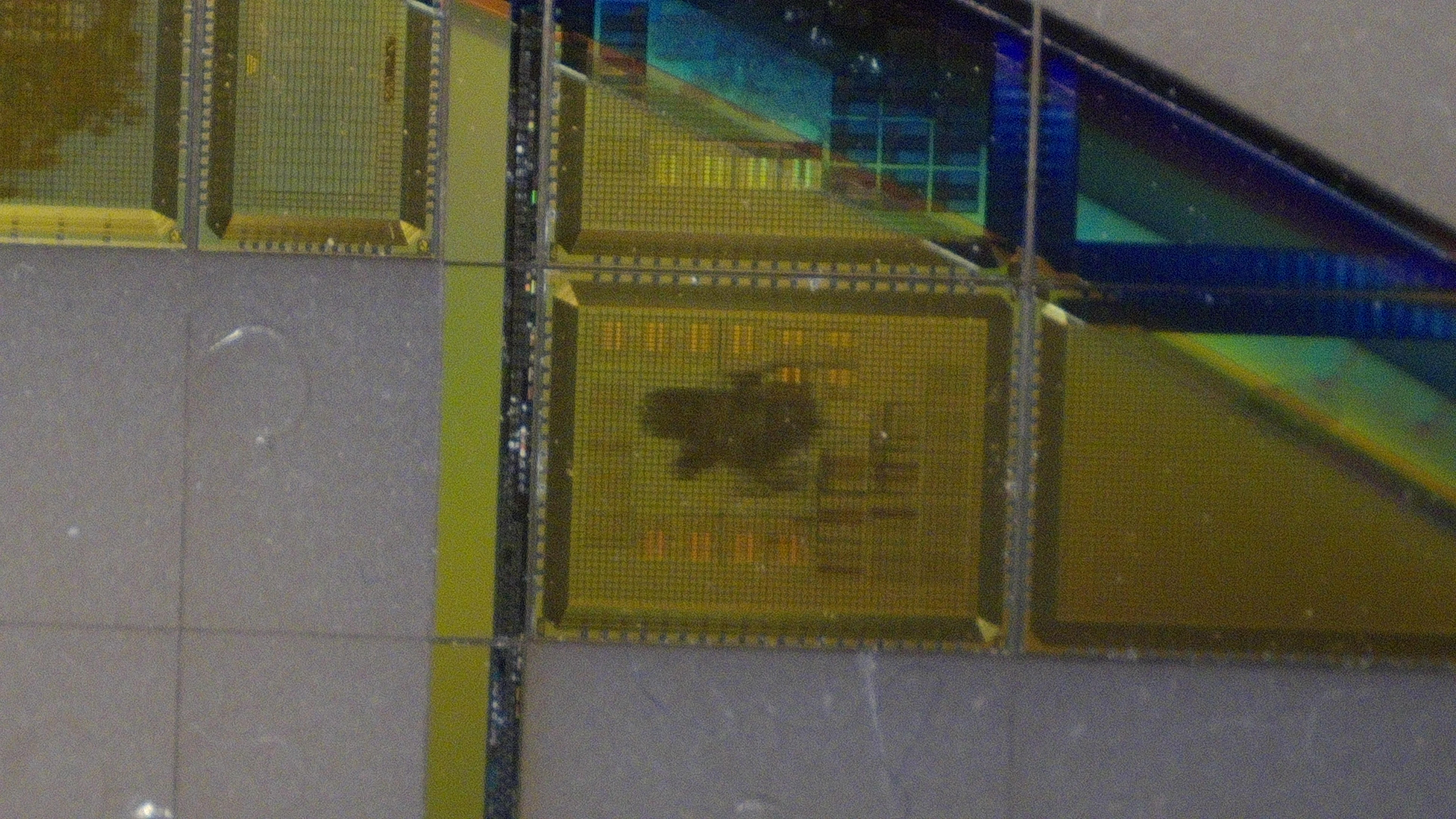

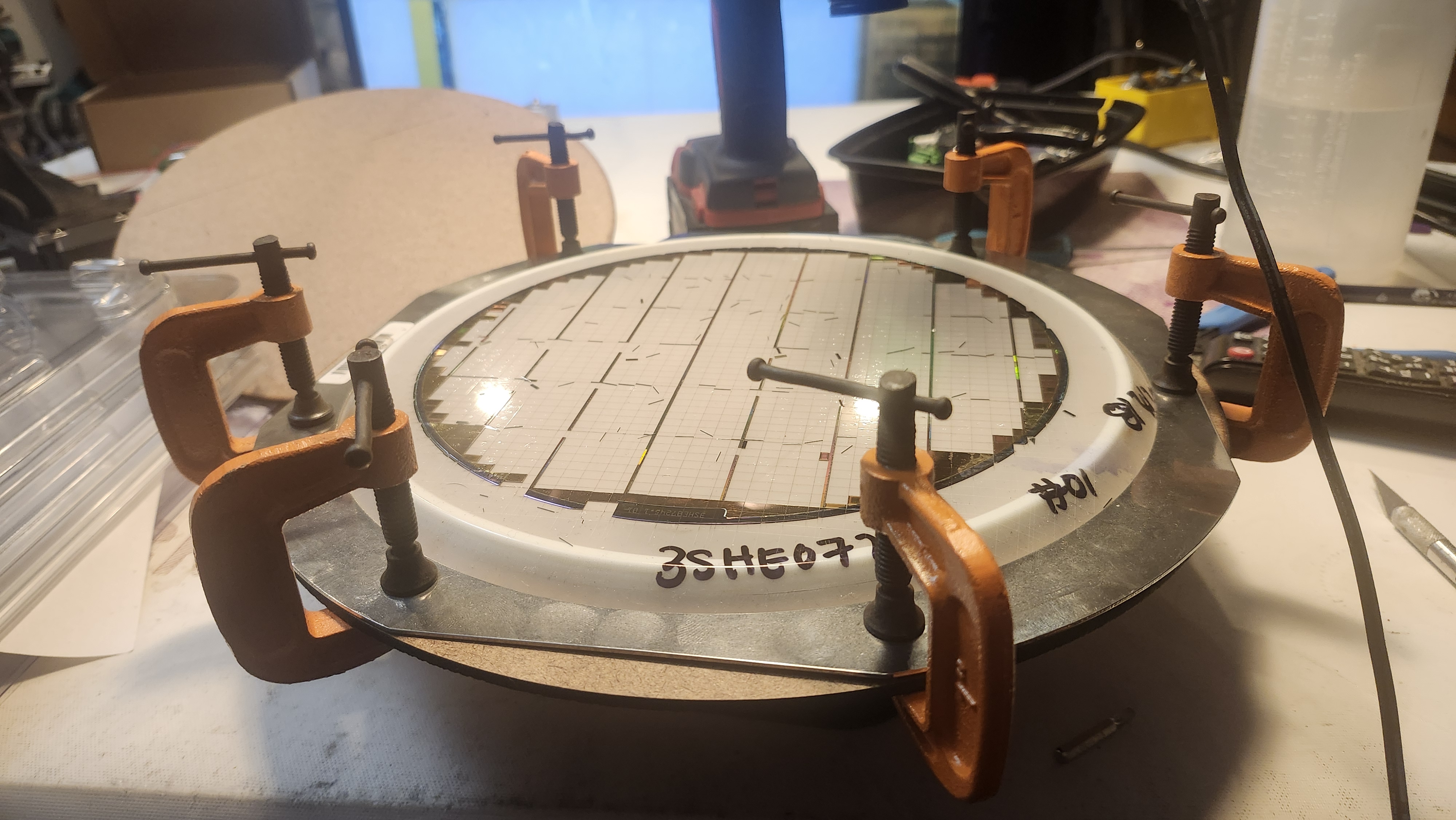

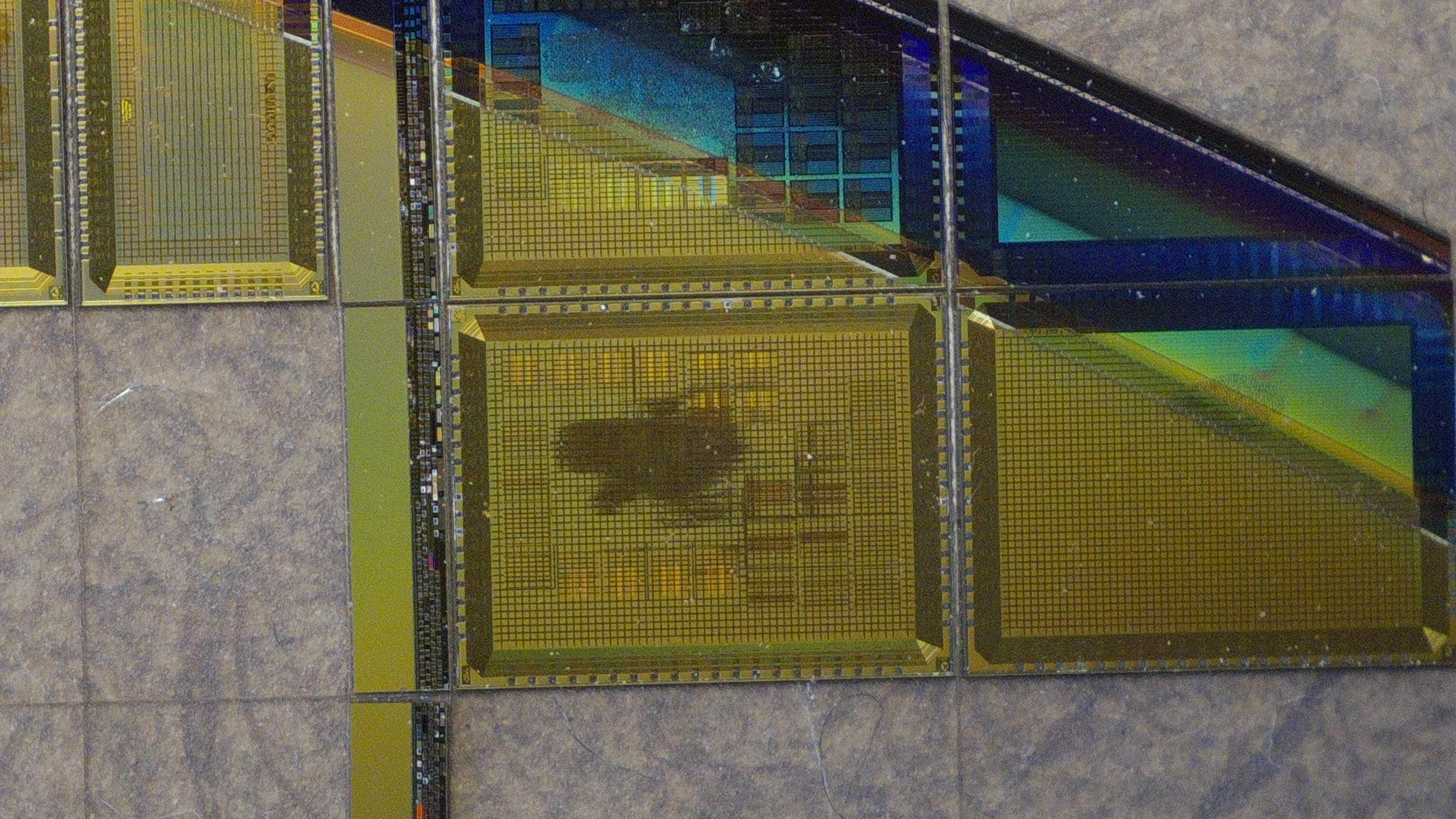

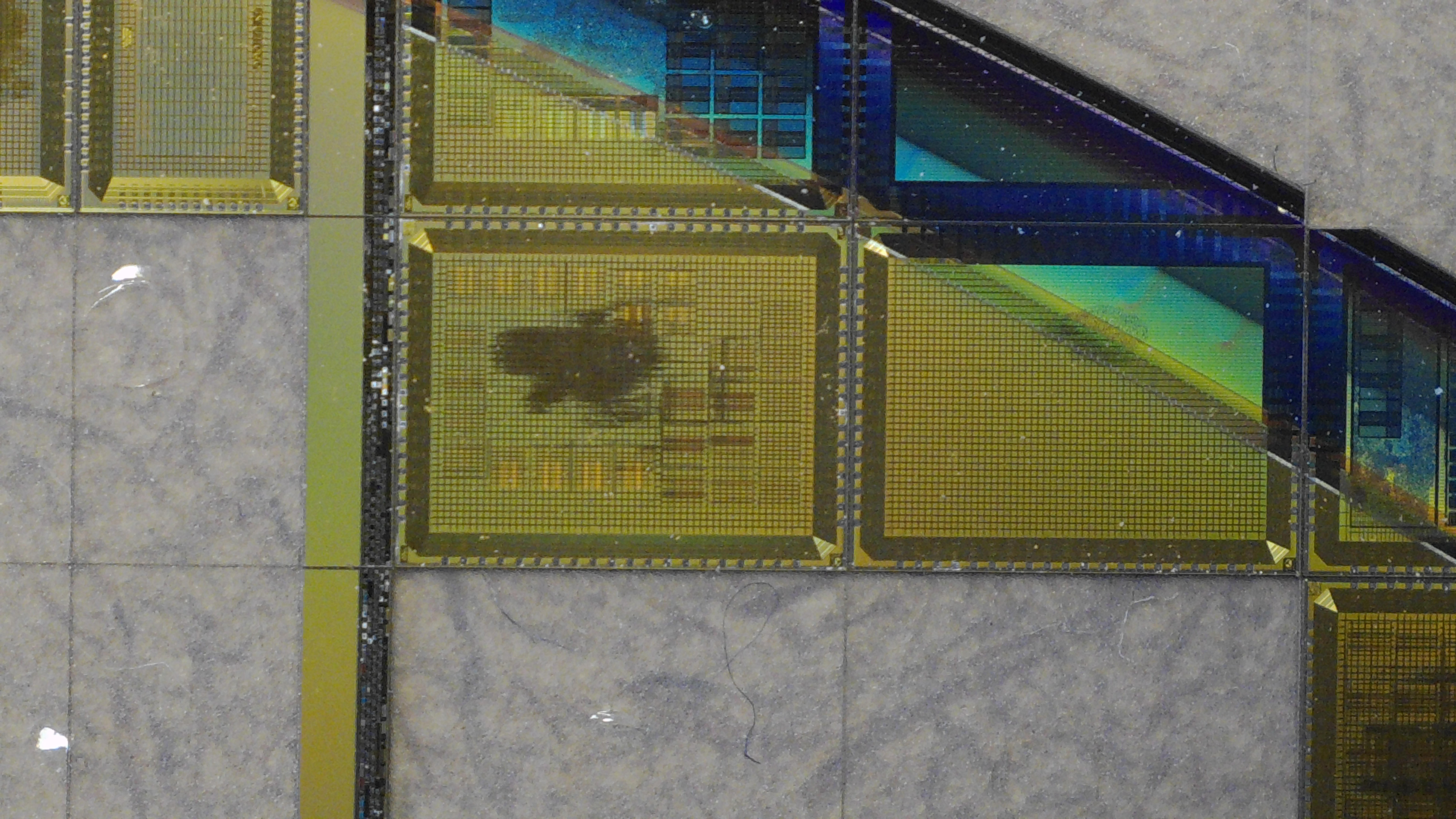

Ok, I've done some testing with tape-stretching The 3 images, in order; are 3mm, 6mm, and 8mm stretch heights changed by changing out the material underneath. Under any circumstance I think this is worth pursuing if only for the fact that it tightens the tape up like a drum which should help to keep the tape from tenting with the pusher from the bottom that comes and pushes the die off the tape. In addition to the clearance gained from the stretch.
Image attachment
Image attachment
Image attachment
Image attachment
Image attachment
7:04 a.m.

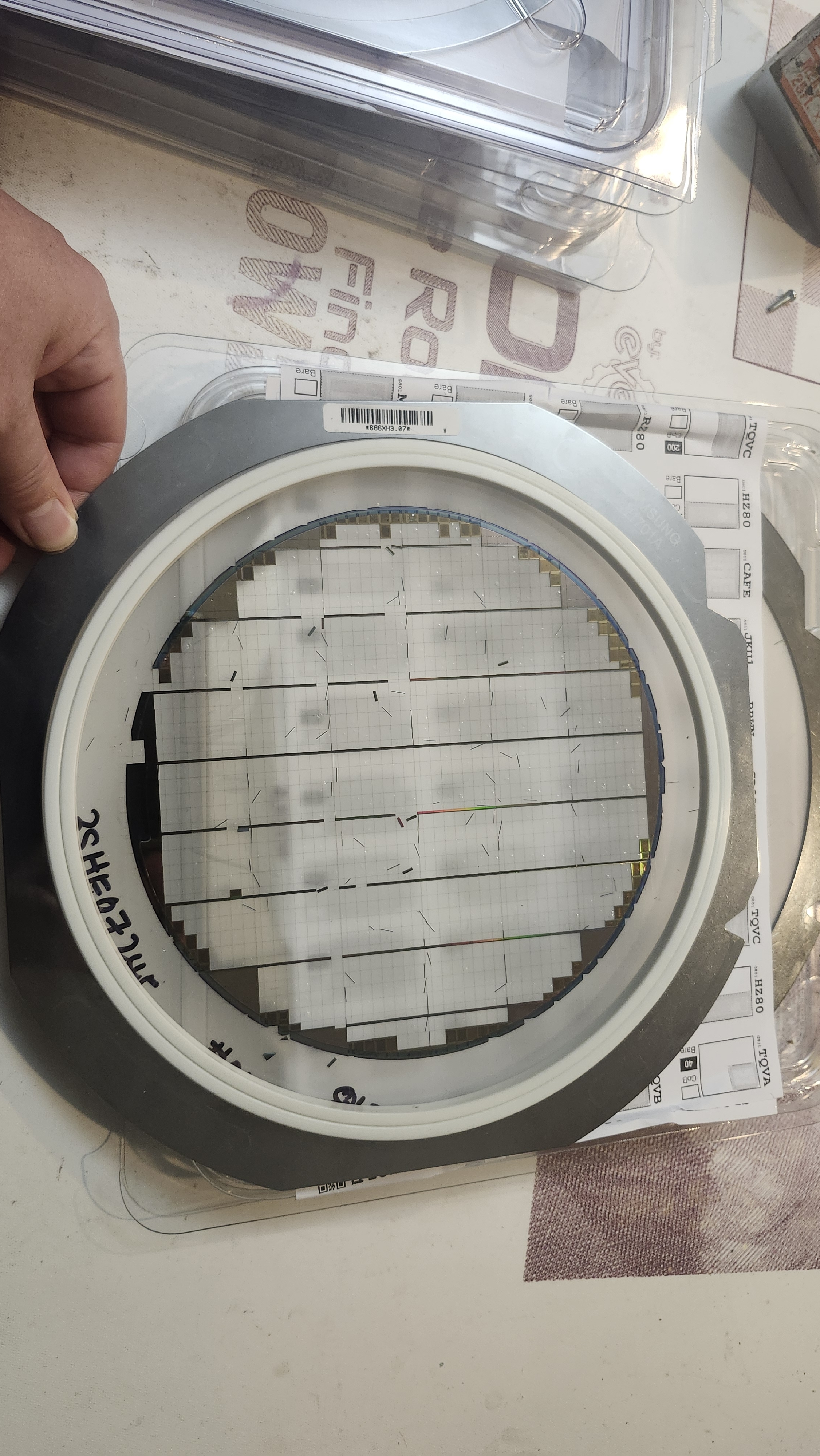

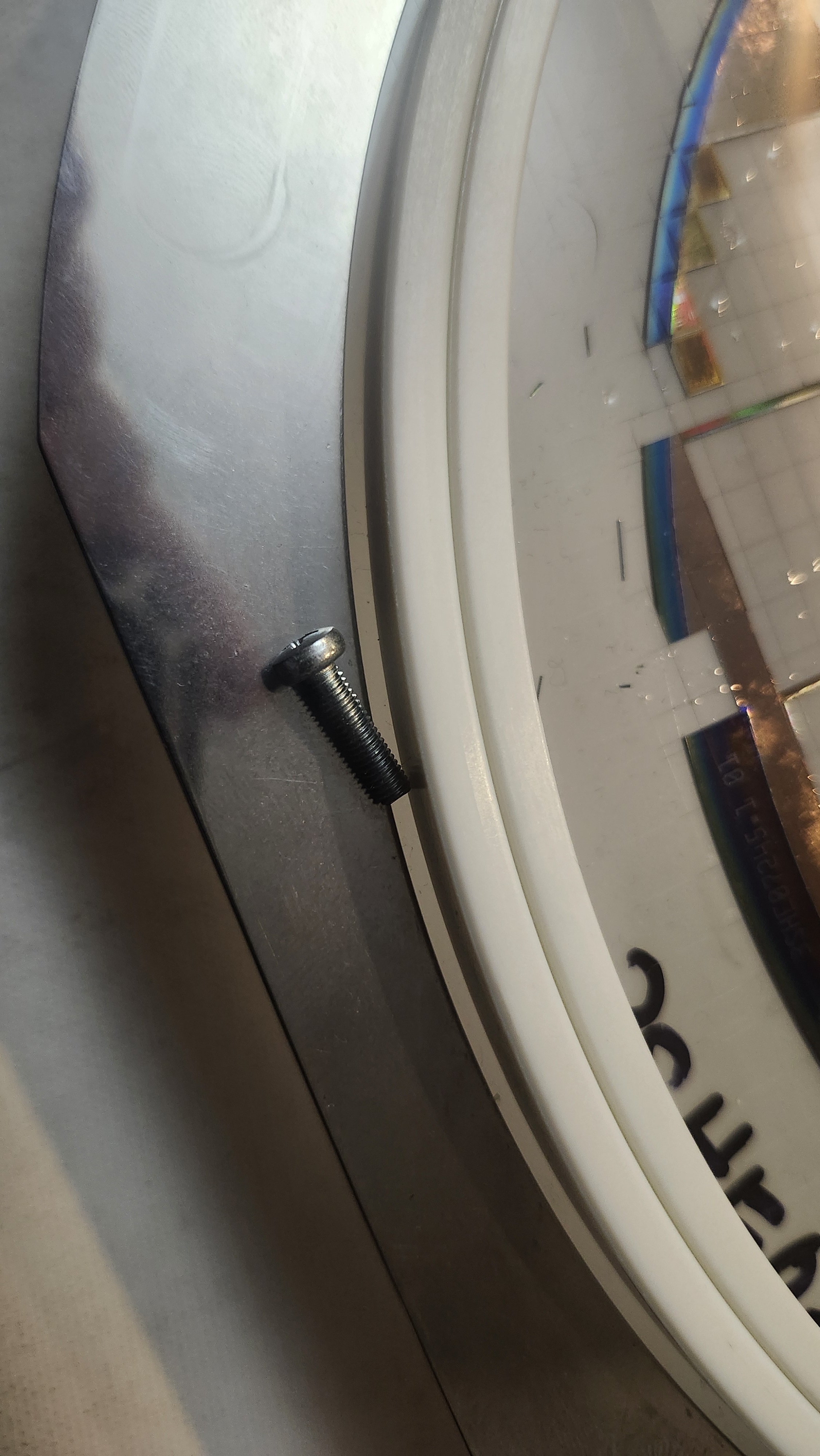

All this brings us to ask whether I try to incorporate the stretcher into the holder in the machine, or if we want to get a separate machine that does the stretching. There are stretch rings that you can buy and these are the smallest in the 10" range and the 8" ones are too small. I am not sure why this is... but that's how it is Looking at the ring inside the dicing frames we have been provided, we may be able to use the professional model, but it's still unclear whether it will work with the wafers mounted to the dicing frames. We already have pneumatics on the current machine and all this is making me think that just having them stay on the frames the entire time would be a benefit and just have the stretch happen when we clamp the frame in. @Tim 'mithro' Ansell
Image attachment
Image attachment
Avatar
Avatar
Andrew Wingate
All this brings us to ask whether I try to incorporate the stretcher into the holder in the machine, or if we want to get a separate machine that does the stretching. There are stretch rings that you can buy and these are the smallest in the 10" range and the 8" ones are too small. I am not sure why this is... but that's how it is Looking at the ring inside the dicing frames we have been provided, we may be able to use the professional model, but it's still unclear whether it will work with the wafers mounted to the dicing frames. We already have pneumatics on the current machine and all this is making me think that just having them stay on the frames the entire time would be a benefit and just have the stretch happen when we clamp the frame in. @Tim 'mithro' Ansell
Tim 'mithro' Ansell 2026-05-30 9:21 a.m.
I think I proposed something like in machine clamping
Avatar
Avatar
Tim 'mithro' Ansell
I think I proposed something like in machine clamping
Andrew Wingate 2026-05-30 7:22 p.m.
You did! I'm still not sure how/if I can fit it along with the motion components, but it's looking more promising
Avatar
Avatar
Andrew Wingate
You did! I'm still not sure how/if I can fit it along with the motion components, but it's looking more promising
Tim 'mithro' Ansell 2026-05-31 12:18 a.m.

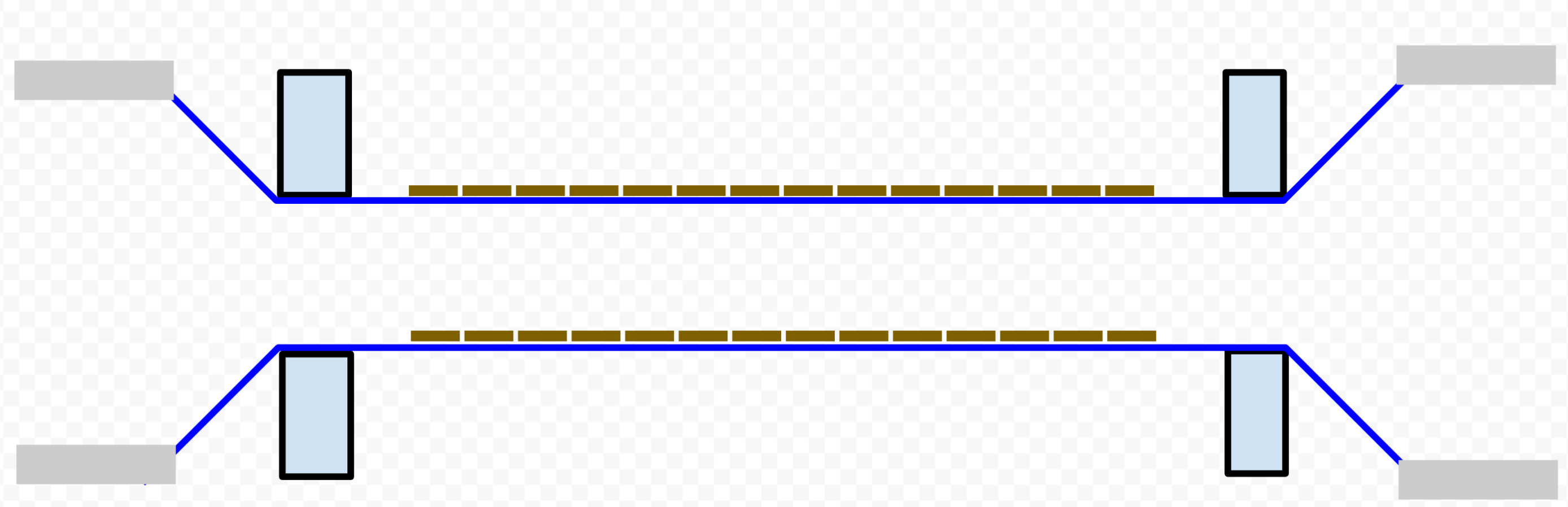

I think I was suggesting that something push down rather than up... I'm sure you'll figure out the best mechanism.
Image attachment
