this error does not seem to be solvable. it does not even make sense. if you know the answer, I would appreciate it. It is a DRC error that comes from the cap. apparently it says the bottom plate should be wider than the top ones. and that is what is already there

@Leo Moser (mole99) / @Tim Edwards - Any idea?

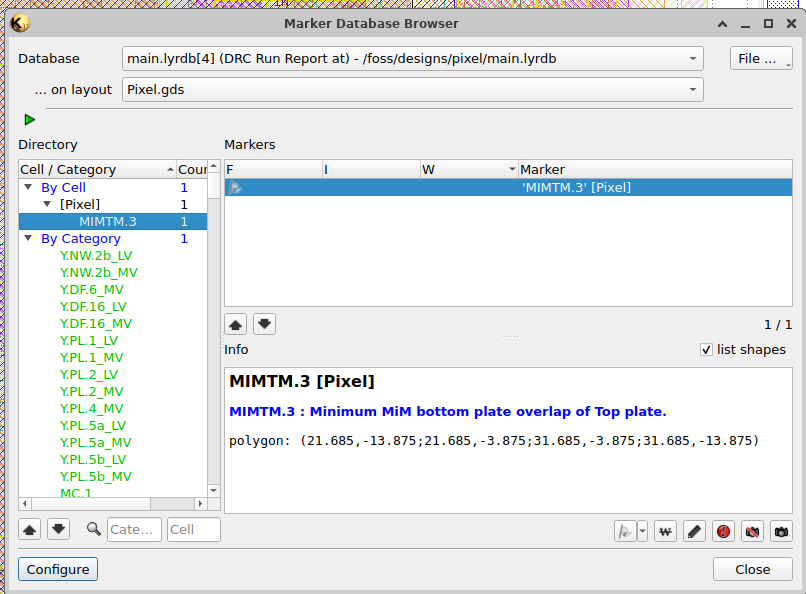

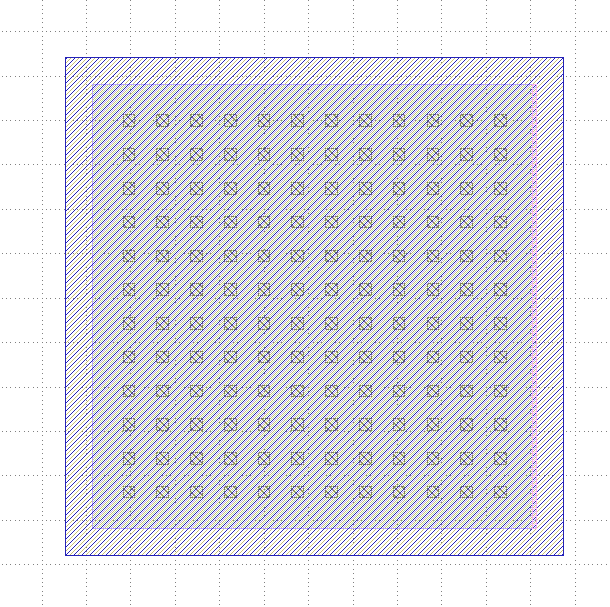

more context: that is the cap, between 5 and 6. just being instantiated results in that error (edited)

@Hateemx Here're the relevant rules from the klayout technology. Sorry if the explanation is too long.

  mimtm_virtual = fusetop.sized(1.06.um).and(topmin1_metal.interacting(fusetop))
...
  # Rule MIMTM.3: Minimum MiM bottom plate overlap of Top plate.
  logger.info('Executing rule MIMTM.3')
  mimtm3_l1 = fusetop.enclosed(mimtm_virtual, 0.6.um).polygons(0.001.um)
  mimtm3_l2 = fusetop.not_inside(mimtm_virtual)
  mimtm3_l = mimtm3_l1.join(mimtm3_l2)
  mimtm3_l.output('MIMTM.3', 'MIMTM.3 : Minimum MiM bottom plate overlap of Top plate.')

When METAL_LEVEL = 5LM, top_min1_metal = metal4 So mimtm_virtual is the intersection of fusetop layer grown by 1.06 and metal4. The first part of the rule, mimtm3_l1 checks that metal4 encloses fusetop by 0.6um. The second part of the rule mimtm3_l2 checks for fusetop outside of metal4. Note that this rule is checking metal4 and fusetop not metal4 and metal5.

thanks, the cap is between 5 and 6. and the fusetop is enclosed by 0.6um. I even tried extending metal 5 even more, but no change (edited)

@Hateemx - It's probably a good idea to commit your changes somewhere and share your GDS for other people to look at.

The problem is that "the cap is between 5 and 6" but this process has only 5 metals.

@Hateemx When you say between 5 and 6, do you mean metal5 and metal6? Is this process 6LM and not 5LM?

Yes metal 5 and 6. There is no metal 6 yes I thought it is the same as “top metal” but now I get it. I was just using the 2f0F cap and thought it corresponds to that

@Hateemx If it's a pcell, there might be an option to specify the lower and/or upper layer.

The Pcell is called mimcap, without specifying capacitance densities. I can use lower metals but i am mot sure how the density works. So what if it is an M4/M5 cap? (edited)

1

There's MIM option A and B:

Afaik this is the stack up we use: https://gf180mcu-pdk.readthedocs.io/en/latest/analog/layout/inter_specs/inter_specs_3_43.html So the MIM cap should be on top of Metal4.
