Has anyone been able to pass timing for hold checks on an 11MHz+ design? I have done everything I could think of, yet the corners still end up failing. The path is always pad -> reg nothing else. I've tried these settings: PL_RESIZER_HOLD_SLACK_MARGIN from 0.1, 0.3, 0.5 even 0.7 and none seem to make a difference (I do get less hold errors but all still fail) I've tried PL_RESIZER_ALLOW_SETUP_VIOS and set_input_delay -min 0, .5, 1, 1.5 Any ideas?

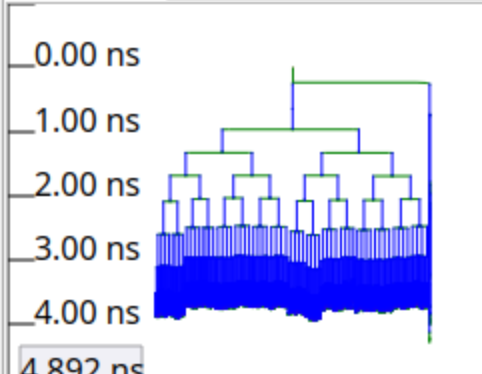

Perhaps an unbalanced clock tree? You can view the clock tree in OpenROAD GUI.

Trevor Peyton

Has anyone been able to pass timing for hold checks on an 11MHz+ design? I have done everything I could think of, yet the corners still end up failing. The path is always pad -> reg nothing else. I've tried these settings: PL_RESIZER_HOLD_SLACK_MARGIN from 0.1, 0.3, 0.5 even 0.7 and none seem to make a difference (I do get less hold errors but all still fail) I've tried PL_RESIZER_ALLOW_SETUP_VIOS and set_input_delay -min 0, .5, 1, 1.5 Any ideas?

sure; I've passed hold checks on a 60MHz design :p

20:12

I do often need to ECO some hold buffers in though

With the exception of the right spot which I'll look into it looks very balanced.

Lofty

I do often need to ECO some hold buffers in though

Do you manually place them in? Did you change your input/output delays or do you use the templates default 0 for min?

Trevor Peyton

Do you manually place them in? Did you change your input/output delays or do you use the templates default 0 for min?

read 54-openroad-stapostpnr/summary.rpt to find the failing corners, then look at 54-openroad-stapostpnr/<corner>/min.rpt to find the failing paths, and then follow the docs

20:21

it's manual in that you have to point the tooling at the cell you want to insert a hold buffer for, but there's no physical placement or such

2

Thank you, I have been looking at those corners but I didn't know about the ECO step!

(the downside of having a 60MHz design is that I have basically given up on meeting slow corner setup without major cheating)

My original target was 90MHz and now I'm just trying to get any passing. I'm currently failing 10MHz...

are you using the 9-track libraries? (edited)

Whatever the default one is.

7-track. Try adding STD_CELL_LIBRARY: gf180mcu_fd_sc_mcu9t5v0 to your librelane/config.yaml

1

I'll give it a go after I try ECO. Surely 10MHz is possible with the 7-track? At this point - what do I know haha!

@Lofty Did you ever run into unconnected ECO pins after the eco step?

Looks like the disconnected pins are pwr/gnd: eco_buffer_0/VDD, eco_buffer_0/VNW, eco_buffer_0/VPW, and eco_buffer_0/VSS

What does your I/O connect to? If it's not actually driven synchronously alongside your clock input. You may be able to further relax the timing. With a input_delay -min 0 you're telling the tools, the external i/o arrives with the clock. So it tries to add 4ns of delay to ensure a leaf in your clock tree.

Everything is synchronous with the clock input.

(oof, did not know about ECO or 9T stuff either. probably would have saved a lot of agony fussing with settings

)

Maybe, ECO isn't working for me still and neither is the 9T

For anyone that runs into the ECO issue: "+OpenROAD.DetailedRouting": "Odb.InsertECOBuffers" "+Odb.InsertECOBuffers": "OpenROAD.DetailedRouting" I haven't confirmed yet, but I added the Odb.InsertECOBuffers step but I didn't add the routing after which likely left the ECO buffers unconnected.
