Information / questions / io pads versions
Between 11/30/2025 23:59 and 01/01/2026 00:00
Avatar

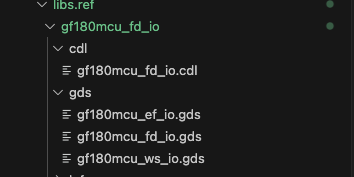

Hi all, I noticed that there are 3 types of gds for the pad standard cells but only one type has .cdl file. Was curious which version should we use?
Avatar
Leo Moser (mole99) 12/02/2025 07:27
fd are the foundry provided cells. ef is from Efabless and modifies the digital I/O cell to add an analog pin. ws stands for wafer.space and modifies the power/ground pads to add another pin access layer, since that is necessary for OpenROAD to connect to the core ring.
