Great work! I just had a look at the layout in https://github.com/ishi-kai/ISHI-KAI_Multiple_Projects_WaferSapce-GF180-1/blob/main/gds/ISHI-KAI_WS_RUN1.zip and I noticed that the core area does not contain any filler cells. Does your design comply with the density rules? I also saw that you moved the QR code from the bottom left corner to the top left corner. While this is fine, is there a reason for it? Thanks!

10:12

FYI your design needs to pass this precheck: https://github.com/wafer-space/gf180mcu-precheck

@Leo Moser (mole99)

I noticed that the core area does not contain any filler cells. Does your design comply with the density rules?

I have not checked yet. Is there a filler script?

Yes, it is here: https://github.com/wafer-space/gf180mcu/tree/main/gf180mcuD/libs.tech/klayout/tech/drc/filler_generation

gf180mcu/gf180mcuD/libs.tech/klayout/tech/drc/filler_generation at ...

Temporary development repository for the gf180mcuD PDK variant. - wafer-space/gf180mcu

1

I modified the density rules and committed the changes.

I also saw that you moved the QR code from the bottom left corner to the top left corner. While this is fine, is there a reason for it?

I have also modified this one. The bottom left is the QR and the top right is the Wafer.Space logo. (edited)

23:41

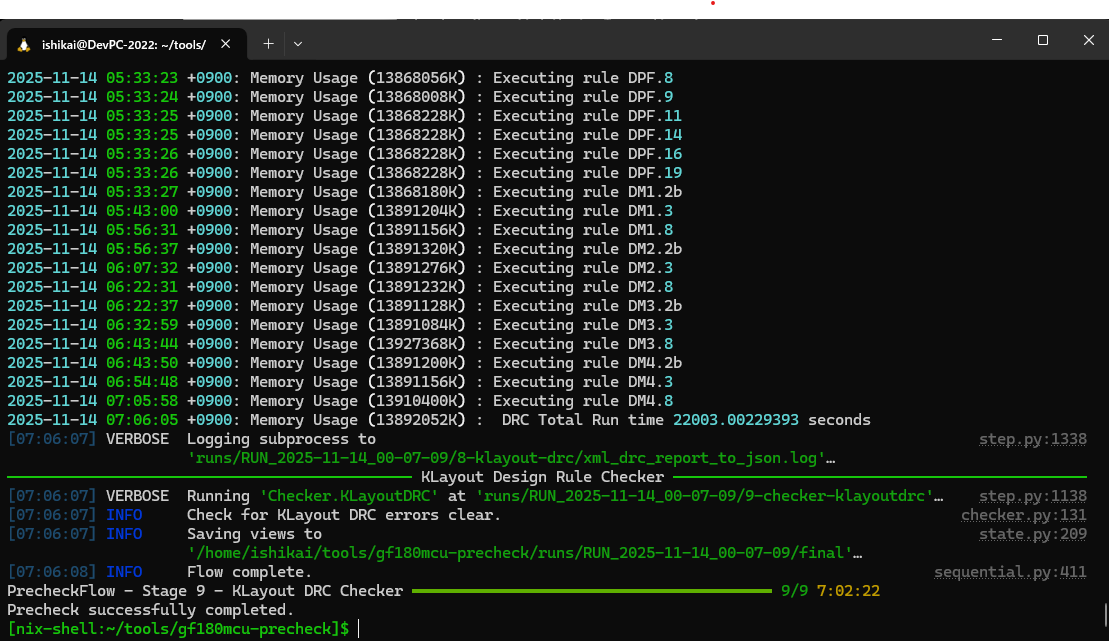

https://github.com/ishi-kai/ISHI-KAI_Multiple_Projects_WaferSapce-GF180-1/tree/main/precheck_log/RUN_2025-11-14_00-07-09 (edited)

1

Great! Thanks for the change, that ensures that we can manufacture the chip. There may be a few more updates to the template, in which case you will need to rerun filler generation (sorry!). I'll notify you in the #project-template channel when it's ready. (edited)
