11:16

Actually the 8bitworkshop simulator supports 24-bit colour. From what I understand, the VGA Playground is based on 8bw: https://8bitworkshop.com/v3.12.0/?platform=verilog-vga&file=ball_paddle.v

11:18

To make it display RGB888, you just need to redefine the rgb port as [31:0] and then it is packed as ABGR (upper 8 bits must be 0xFF).

11:21

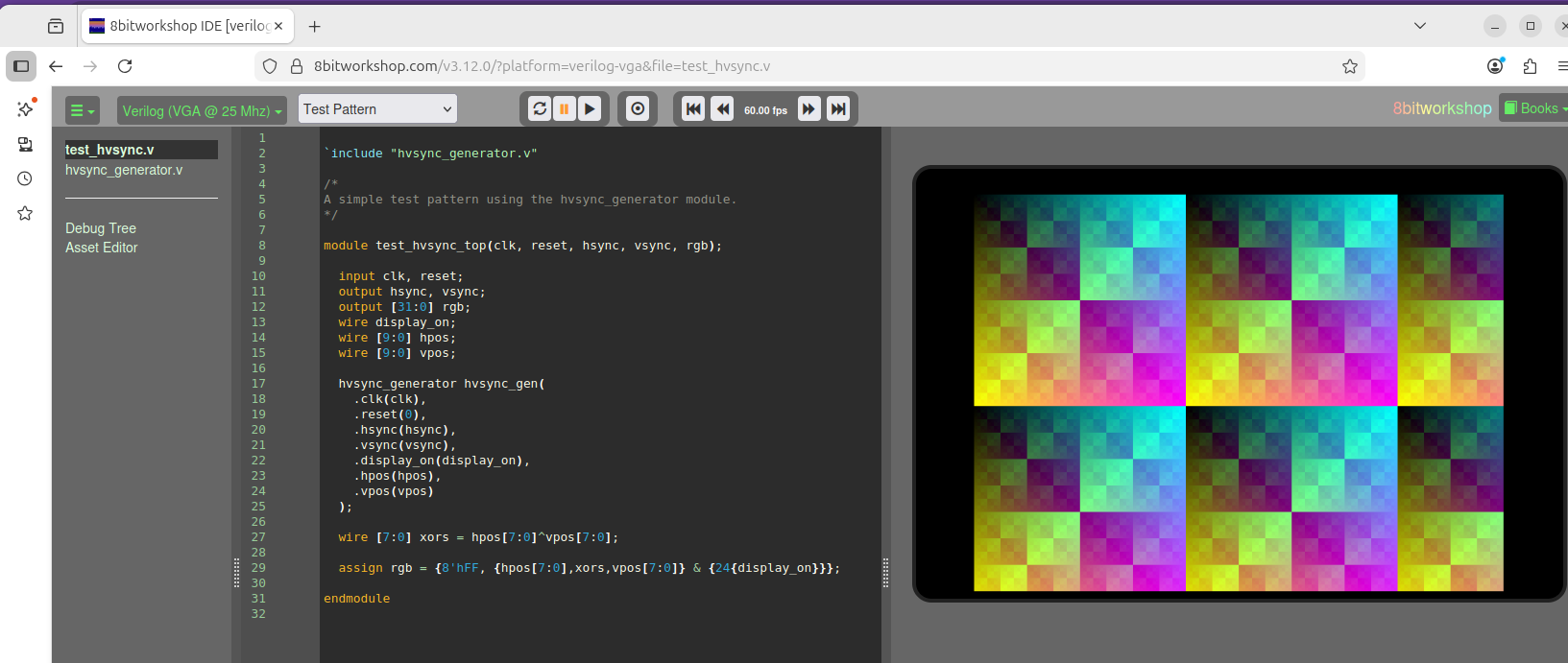

For example:

Very good!

11:21

That’ll let me mess around a bit

Have fun! I think there's a way to use GitHub repos as "storage" too

11:24

Have you got a repo you've shared for your DAC, btw?

Multi-project die. Contribute to AvalonSemiconductors/ws-submission-2025 development by creating an account on GitHub.
