Thanks a lot Sylvain! Just updated the project template.
18:43

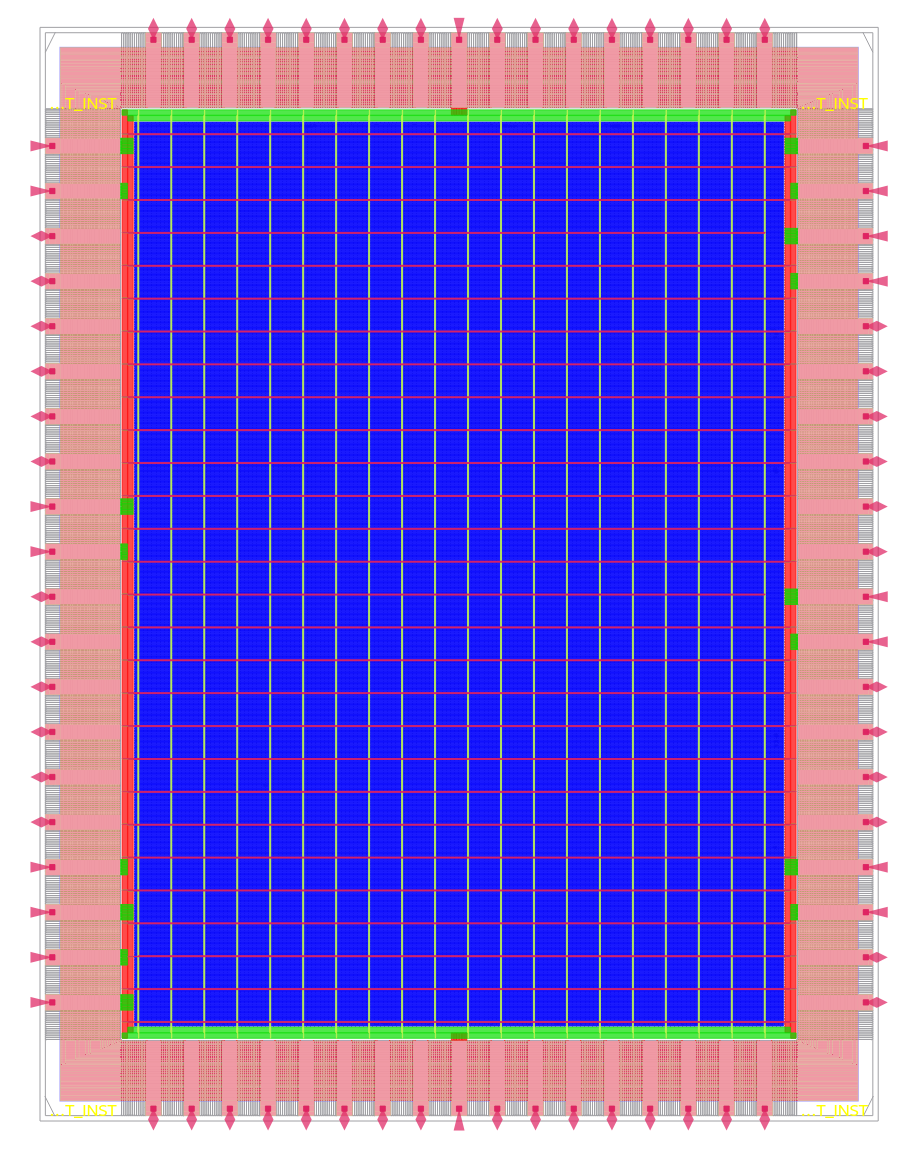

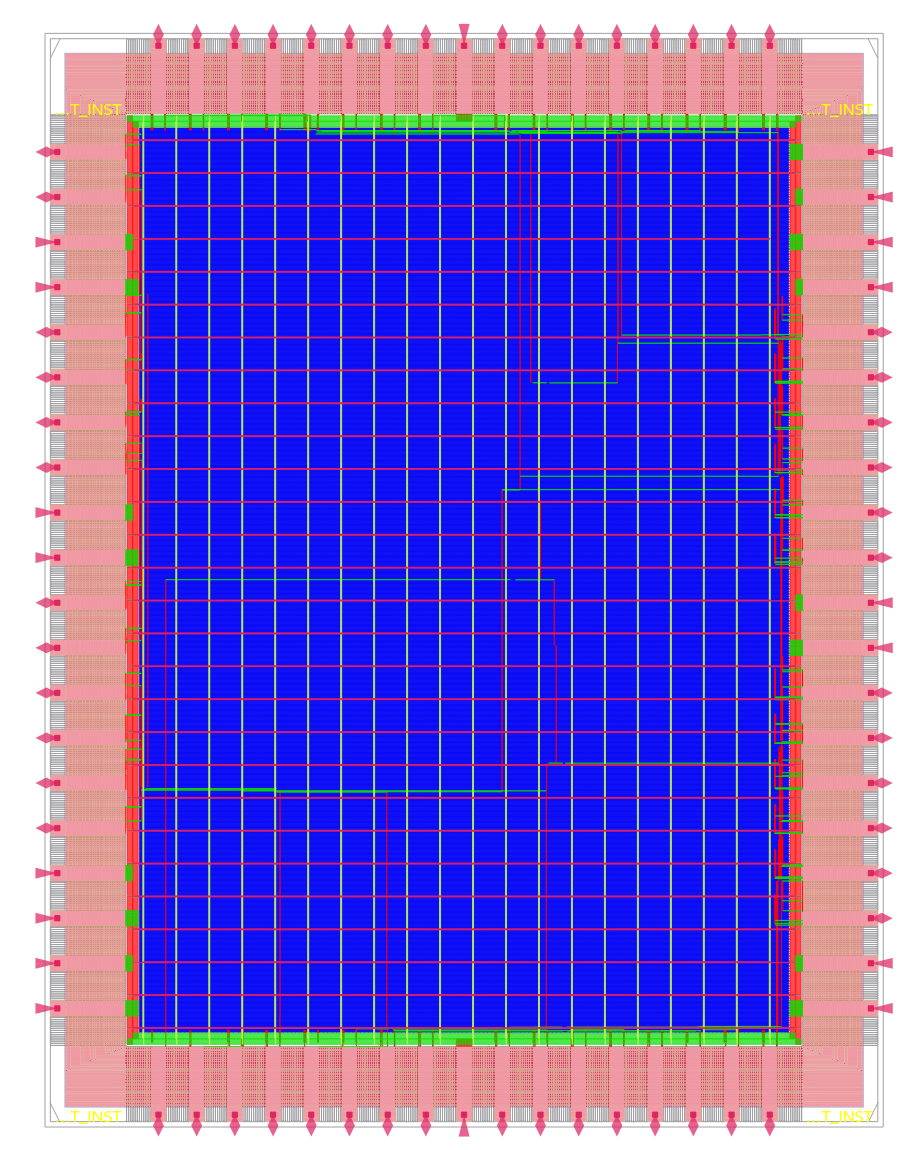

The padring now looks like this. Once you have yours we need to double check the bondpad positions. I have updated the padring script to also support pads with arbitrary widths, but for this case it should behave the same as before.
Yeah the position of power pads match.
The labels (input / bidir / clk / rst) don't but that doesn't matter, all those should be broken out 1:1 without any special consideration.
It's important for the breakout that :
The PWR VDD AUX are not connected to power rings, but just broken out to pins like other , just with decoupling caps
The IO / Core VDD pins are correctly mapped to independent rings with appropriate decoupling.
Pad position is fine, it's distributed equally, so I can make sure to match that ( if for some reason my script doesn't match it already ... ).(edited)
Then let me check again
But I have yet to try a cell with a different width.
